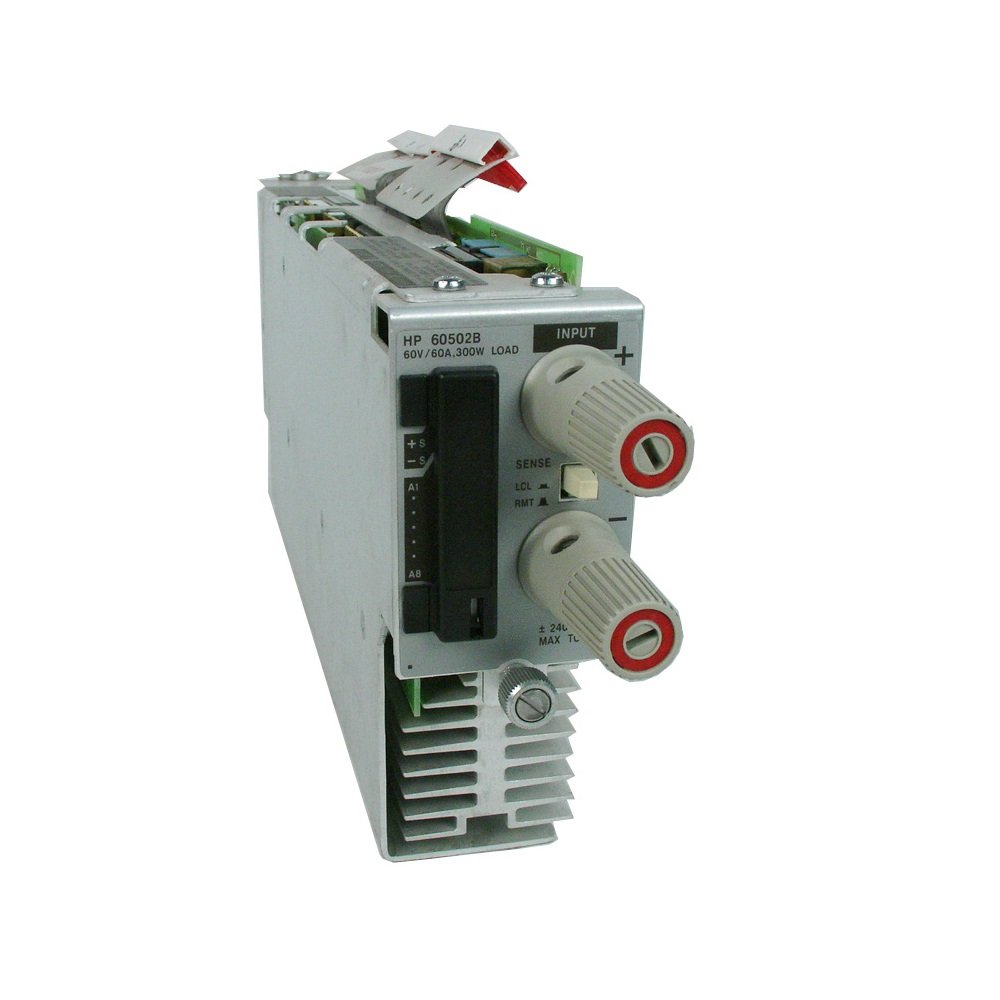

The Keysight 60502B is a 300 W DC electronic load module engineered for testing and characterization of DC power sources and power components. Operating across 3 V to 60 V with maximum current of 60 A, it delivers precise load emulation through constant current, constant voltage, and constant resistance modes. A built-in programmable transient generator (0.25 Hz to 10 kHz) enables dynamic load simulation with user-defined amplitude, frequency, duty cycle, and slew rate parameters. The module mounts as a single slot in Keysight 6050A and 6051A mainframes and provides both manual front-panel control via LCD meters and full remote operation through GPIB with SCPI command compatibility.
Technical Specifications
• Power Dissipation: 300 W (up to 40 °C ambient)
• Operating Voltage Range: 3 V to 60 V
• Maximum Current: 60 A
• Constant Current Mode: 0–6 A and 0–60 A ranges; accuracy 0.1% ±75 mA; regulation 10 mA
• Constant Voltage Mode: Accuracy 0.1% ±50 mV; regulation 10 mV (with remote sense)
• Constant Resistance Mode: 0.033–1.0 Ω (0.8% ±8 mΩ) and 0.20–24.0 Ω (0.8% ±200 mΩ)
• Transient Generator Frequency: 0.25 Hz to 10 kHz with 3% accuracy
• Duty Cycle Range: 3%–97% (0.25 Hz to 1 kHz); 6%–94% (1 kHz to 10 kHz)
– Key Features
• Multiple protection mechanisms: overcurrent, overvoltage, overpower, overtemperature, and reverse polarity
• Six volatile user-definable states for settings save/recall plus one user-definable power-up state
• Remote sense capability in constant voltage mode
• LCD front-panel display of voltage, current, and power
• Full-function keypad for manual operation
• GPIB interface for complete control and readback across all load modules in a single mainframe
• Programmable analog voltage control in constant current mode
• External trigger input for synchronization
– Typical Applications
• DC power source testing and evaluation
• Power component characterization
• Production and incoming inspection
• Research and development validation
– Compatibility & Integration
The 60502B mounts directly into Keysight 6050A and 6051A electronic load mainframes. Dimensions: 8 × 10 × 26 inches; weight 21 lbs.
