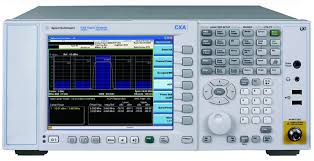

The Agilent/Keysight N9010A EXA Signal Analyzer is a flexible platform for signal analysis across multiple frequency bands from 10 Hz to 44 GHz, with extension to 110 GHz via external harmonic mixers. This instrument delivers high-speed, accurate measurement of complex and time-varying signals across research, manufacturing, and field service applications.
Technical Specifications
Frequency Coverage
• Standard configurations: 10 Hz to 3.6 GHz, 7 GHz, 13.6 GHz, 26.5 GHz, 32 GHz, or 44 GHz
• Extended range to 110 GHz with external harmonic mixers
Analysis & Resolution
• Analysis bandwidth: 10 MHz or 25 MHz standard; optional 40 MHz
• Resolution bandwidth: 1 Hz to 3 MHz (10% steps), plus 4, 5, 6, 8 MHz
• RBW accuracy: ±0.10 dB (1 Hz to 3 MHz); ±1.0 dB (4–8 MHz)
• Video bandwidth: 1 Hz to 3 MHz (10% steps), 4, 5, 6, 8 MHz, and 50 MHz wide open
Amplitude Performance
• Total absolute amplitude accuracy: ±0.40 dB (9 kHz to 3.6 GHz)
• Typical absolute accuracy: ±0.27 dB
• Displayed average noise level: -170 dBm at 1 GHz; -163 dBm at 1 GHz to -153 dBm at 44 GHz with preamplifier
• Maximum dynamic range (3rd order): 112 dB at 1 GHz
• Third order intermodulation distortion (TOI): +13 dBm, +19 dBm
Attenuator Options
• Standard mechanical: 0–60 dB in 10 dB steps
• Fine step attenuator (N9010A-FSA): 0–60 dB in 2 dB steps
• Electronic attenuator (N9010A-EA3): 0–24 dB in 1 dB steps to 3.6 GHz
Preamplifiers
• P03: 100 kHz–3.6 GHz, +20 dB gain
• P07: 100 kHz–7 GHz, +35 dB gain
• P13: 100 kHz–13.6 GHz, +40 dB gain
• P26: 100 kHz–26.5 GHz, +40 dB gain
• P32: 100 kHz–32 GHz, +40 dB gain
• P44: 100 kHz–44 GHz, +40 dB gain
– Key Features
• Sweep time: 1 µs to 6000 s (span = 0 Hz); fast sweep standard
• 30-ms mode switching capability
• Time gating: Gated LO, gated video, gated FFT; gate length 100.0 ns to 5.0 s
• Frequency reference: Standard aging ±1 × 10⁻⁷/year; optional precision reference available
– Compatibility & Integration
• Interfaces: USB 2.0, 1000Base-T LAN, GPIB
• LXI Class C compliant
• Operating systems: Windows XP Professional, Windows 7
