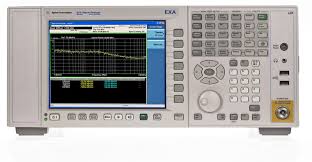

The Keysight N9010A EXA Signal Analyzer is a high-performance instrument for spectral and vector signal analysis across aerospace, defense, and wireless communications applications. It delivers fast measurements, wide analysis bandwidth, and exceptional sensitivity—enabling engineers to characterize complex signals, optimize designs, and accelerate manufacturing test. The analyzer combines intuitive front-panel operation with an open Windows platform for standalone or external control via LXI, GPIB, USB, or Ethernet connectivity.
Technical Specifications
Frequency Range:
• 9 kHz to 3.6 GHz, 7.0 GHz, 13.6 GHz, or 26.5 GHz models
• 10 Hz to 32 GHz or 44 GHz models available
• Extendable to 110 GHz with external mixers
• Range is fixed per model and cannot be upgraded
Analysis Bandwidth:
• 10 MHz standard; optional 25 MHz or 40 MHz
• Instantaneous digitization and analysis window around the selected center frequency
Sensitivity & Dynamic Range:
• DANL as low as -165 dBm; -170 dBm at 1 GHz; -156 dBm at 26.5 GHz with preamplifier
• Amplitude accuracy to ±0.27 dB (95th percentile to 3.6 GHz) or ±0.40 dB at 50 MHz
• Third-order intercept: +13 dBm to +19 dBm depending on configuration
• Maximum 3rd order dynamic range: 112 dB @ 1 GHz; 124.5 dB nominal for C-V2X
• W-CDMA ACLR: 73 dBc (with noise correction)
Phase Noise & Resolution:
• Phase noise: -105 dBc/Hz to -120 dBc/Hz at 10 kHz offset from 1 GHz carrier
• Resolution bandwidth: 1 Hz to 3 MHz; 1 Hz to 8 MHz optional; discrete 4, 5, 6, 8 MHz options
• Sweep time: 1 μs to 6000 s (zero span); 1 ms to 4000 s (≥10 Hz span); 1.5 seconds for full-span 26.5 GHz sweep at 20 kHz RBW
Interfaces & Control:
• LXI-C certified; USB 2.0; 1000Base-T LAN (RJ45); GPIB (IEEE-488)
• Programmable rear IF output (Option CRP); second IF output (Option CR3)
• Dual trigger inputs/outputs (BNC female); analog output (BNC female); VGA monitor output
– Key Features
• Fast measurements with sweep times from 1 ms across full frequency span
• Preamplifier option for enhanced sensitivity at microwave and millimeter-wave frequencies
• Standards-based measurements with optional advanced analysis software
• Open Windows OS for custom application development and automation
– Typical Applications
• Signal characterization and troubleshooting in RF/microwave design
• Manufacturing acceptance testing and quality assurance
• Modulation analysis and compliance verification
• Interference detection and spectral monitoring
– Compatibility & Integration
The N9010A integrates into automated test systems via LXI, GPIB, or Ethernet protocols. Its programmable IF outputs support external signal processing and recording workflows.
