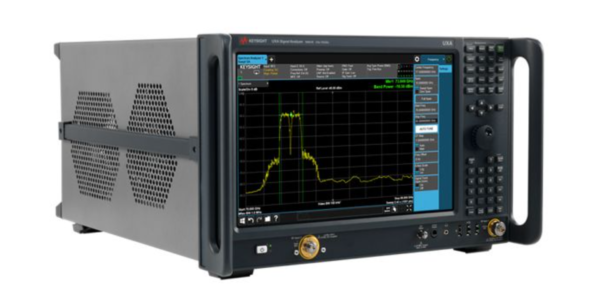

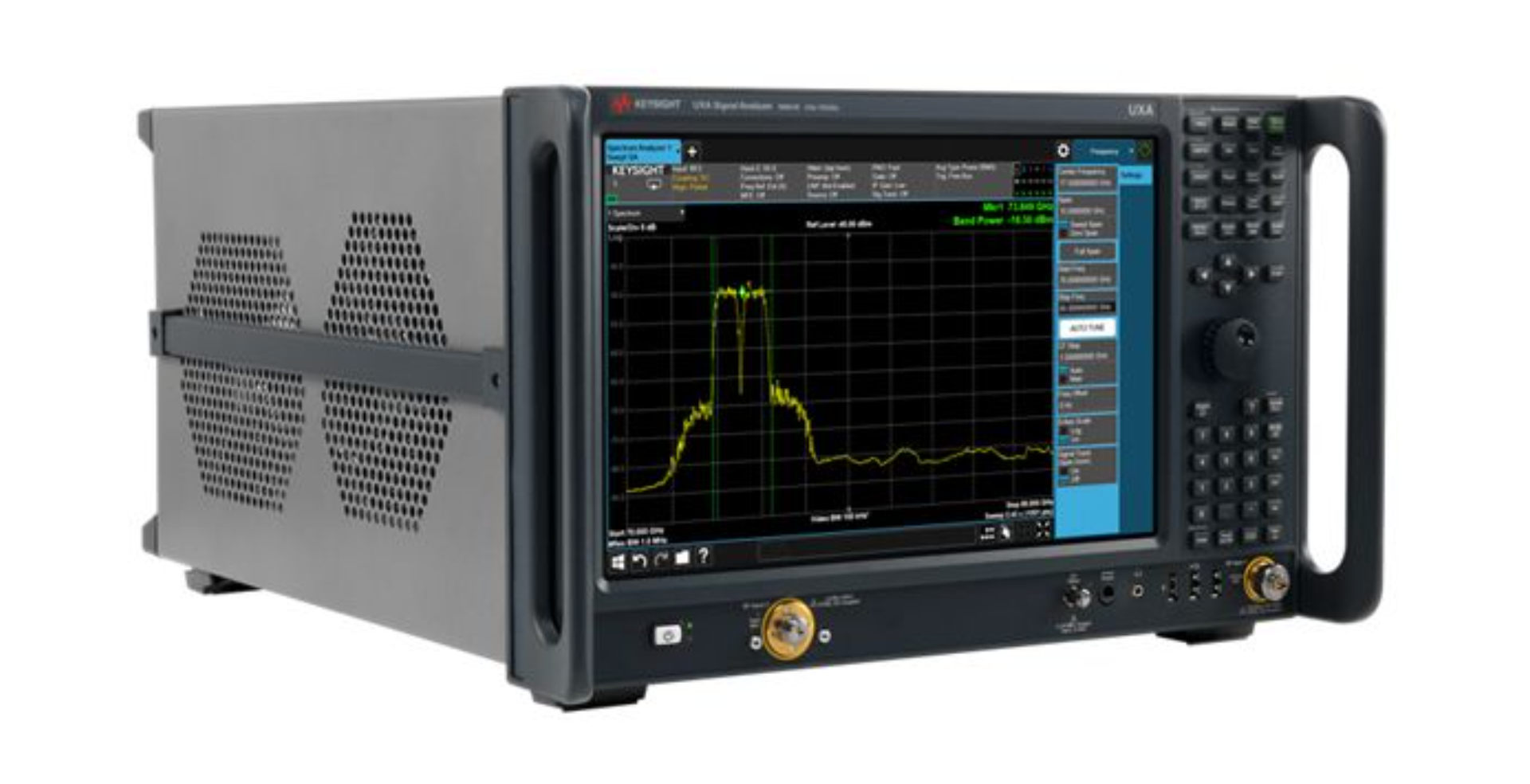

The Agilent/Keysight N9041BP is an obsolete signal analyzer bundle designed for out-of-band 5G NR/MIMO OTA testing. It integrates the N9041B UXA signal analyzer with PathWave X-Series measurement applications, 89600 VSA software, and an RCal calibration unit to deliver a complete test solution for complex 5G signal analysis up to 90 GHz. The bundle’s core instrument provides frequency coverage from 2 Hz to 90 GHz with optional capability extending to 110 GHz, paired with a multi-touch display for interactive analysis and control.
Technical Specifications
The N9041B UXA Signal Analyzer forms the foundation of this bundle. It operates across 2 Hz to 90 GHz, with options supporting extension to 110 GHz. Performance specifications are characterized at room temperature (20–30 °C) under auto couple control, within calibration cycle, and after appropriate warm-up and alignment procedures. Typical performance values represent characteristics exhibited by 80% of units with 95% confidence; 95th percentile values indicate performance tolerances beyond standard specifications.
– Key Features
• Multi-touch display interface on the N9041B UXA for real-time signal visualization and measurement control
• Integrated measurement applications including PathWave X-Series (N9054EM0E, N9085EM0E, 89601B, N90EMFP2B, N9041RT1B) and 89600 VSA software (N89601B)
• RCal calibration unit (U9361M) for signal path verification and accuracy assurance
• Modular option set on the N9041B: 590, P50, H1G, EA3, CRW, and UK6
• Support for wide-bandwidth RF and microwave signal analysis across 5G NR and MIMO OTA protocols
– Typical Applications
Out-of-band 5G NR/MIMO over-the-air testing and characterization. Device and component measurements requiring frequency coverage to 90 GHz with integrated vector signal analysis capabilities.
– Compatibility & Integration
The bundle integrates with Keysight PathWave X-Series measurement applications and 89600 VSA software. IVI instrument drivers enable automated test system integration on Windows 10 and Windows 11 platforms, supporting remote control and data acquisition in production and R&D environments.
