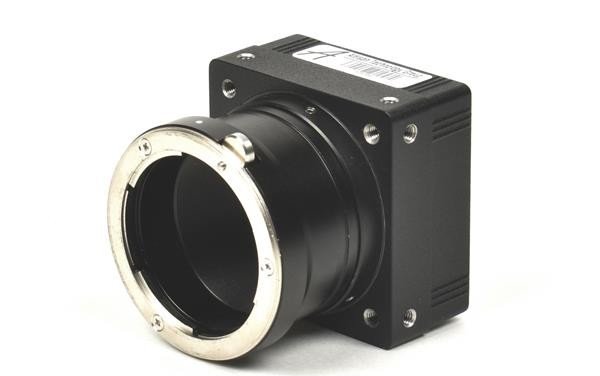

Basler L301kc Line Scan Camera

The Basler L301kc is a tri-linear CCD line scan camera built on the Kodak KLI-2113 sensor for industrial inspection and measurement tasks requiring color image capture at high throughput. It delivers 2098 pixels per line across three separate color channels (red, green, blue) with 14 µm × 14 µm pixel geometry and 100% fill factor. The camera achieves line rates up to 9.2 kHz without spatial correction, or 8.0 kHz with integrated color alignment enabled. Electronic exposure control—selectable between edge-triggered, level-triggered, or programmable modes—ensures precise image timing. Output is via Camera Link LVDS interface at multiple bit depths: 8-bit RGB, single or dual 8-bit, or single/dual 10-bit. F-mount lens compatibility and compact housing (38.1 mm × 62 mm × 62 mm without adapter) support integration into tight OEM layouts. RS-485 serial control over Camera Link allows runtime adjustment of gain, offset, and operating parameters.
