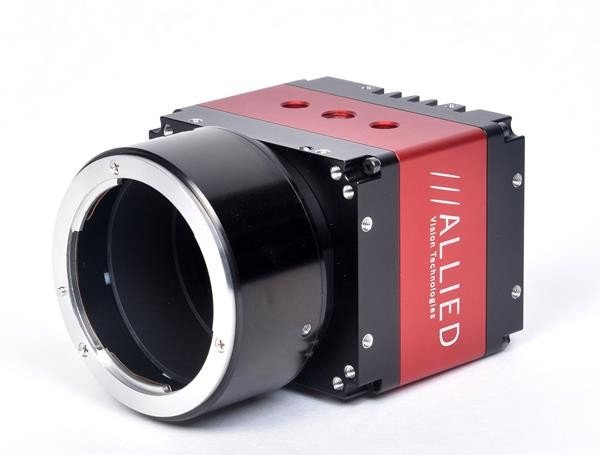

The Allied Vision GT6600 is a 28.8-megapixel industrial camera built for machine vision, quality control, and scientific imaging in demanding environments. Featuring the ON Semiconductor KAI-29050 TRUESENSE Gen 2 CCD sensor, it delivers 6576 × 4384 resolution with 5.5 µm pixels and 14-bit monochrome (12-bit color) output. The camera operates at 4 fps at full resolution, with configurable regions of interest enabling higher frame rates. Global shutter control spans 30 µs to 33.5 s, while the 14-bit ADC and 128 MByte image buffer support demanding acquisition workflows.
Technical Specifications
• Sensor: ON Semiconductor KAI-29050 TRUESENSE Gen 2 CCD (Type 35 mm)
• Resolution: 6576 (H) × 4384 (V) pixels; 28,829,184 total pixels
• Pixel pitch: 5.5 µm × 5.5 µm
• Frame rate: 4 fps at full resolution; higher rates with ROI
• Shutter: Global, 30 µs to 33,500,000 µs
• ADC: 14-bit
• Bit depth: 14-bit monochrome; 12-bit color
• Image buffer: 128 MByte RAM
• Optical filter: No filter (monochrome); Type IRC30 IR cut filter (color models)
– Key Features
• GigE Vision compliant Gigabit Ethernet with screw-mount RJ45; supports up to 100 m cable runs (CAT-6 recommended)
• Power over Ethernet (PoE) supported
• Trigger over Ethernet (ToE) Action Commands for single-cable control
• Hirose I/O port with TTL and opto-isolated outputs; RS232 serial interface
• IEEE 1588 Precision Time Protocol (PTP) clock synchronization
• Auto gain (0–32 dB manual control), auto exposure, auto white balance (GT6600C)
• Binning, decimation, gamma correction, three Look-Up Tables (LUTs)
• Region of Interest (ROI) with separate ROI for auto features
• Defect pixel masking via Defect Mask Loader tool
• Standard F-Mount; optional PA EF, M42, and M58 mounts available
– Typical Applications
• Precision quality control and inspection
• Scientific and research imaging
• Industrial machine vision in extreme environments
– Compatibility & Integration
• Mounting: M3 threads on all sides; 1/4-20 tripod hole
• Dimensions: 96 mm (L) × 66 mm (W) × 53 mm (H)
• Weight: 372 grams
