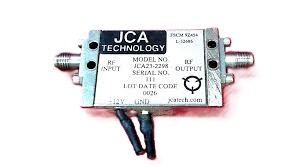

The JCA Technology JCA23-2298 is an RF amplifier engineered for demanding test, measurement, and signal processing applications across defense, aerospace, and communications sectors. It delivers predictable gain and phase characteristics essential for multi-channel transmit-receive architectures and precision RF systems. The component incorporates automated assembly with pick-and-place precision and automatic wire-bonding to ensure consistent performance and reliability in mission-critical deployments.
## Technical Specifications
• Gain Tracking: ±0.75 dB across 2–18 GHz bandwidth
• Gain Matching: ±1.5 dB across 2–18 GHz bandwidth
• Noise Figure: Ultra-low noise performance
• Phase Parameters: Predictable and consistent across operating range
• Operating Temperature Range: −40 °C to +100 °C (power derating applies from +75 °C to +100 °C)
## Key Features
• Precision automated assembly with pick-and-place machinery and automatic wire-bonding
• Tight gain tracking and matching tolerances for phase-coherent multi-channel systems
• Low-noise design optimized for weak-signal detection and measurement applications
• Operating temperature capability from −40 °C industrial floor to +100 °C thermal ceiling
## Typical Applications
• RF and microwave test equipment
• Millimeter-wave signal conditioning
• Multi-channel receiver front-ends
• Defense and security signal processing
• Aerospace telemetry and communications
• Industrial RF measurement systems
## Compatibility & Integration
The JCA23-2298 integrates into systems requiring high-performance RF amplification with matched gain and phase response across 2–18 GHz. Compatible with standard RF connector interfaces typical of test and measurement architectures. Designed for OEM integration into systems where phase coherence and gain stability are critical performance parameters.
