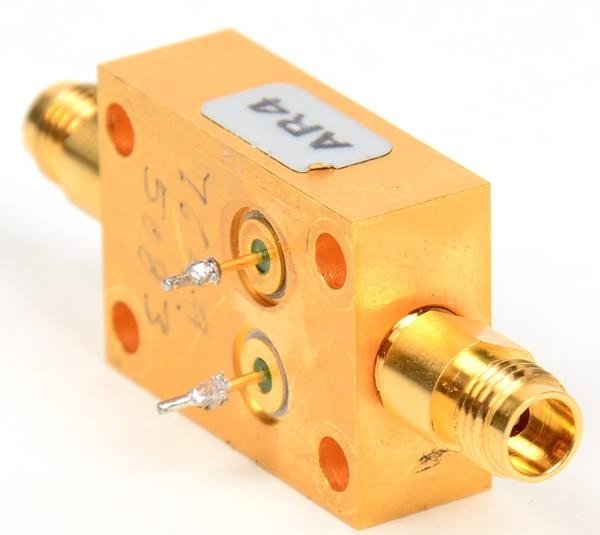

The Agilent/Keysight 5086-7649 is a buffer amplifier engineered for RF and microwave signal conditioning in test and measurement systems. This component maintains signal integrity across demanding applications, delivering reliable performance in frequency-dependent measurement setups. Available primarily through secondary market channels, units are typically supplied in excellent working condition and tested for functionality.
Technical Specifications
The 5086-7649 functions as a dedicated buffer amplifier optimized for RF and microwave frequencies. Electrical characteristics including gain, bandwidth, impedance, and power requirements are application-dependent and should be verified against system integration requirements. The unit is designed with standard RF connector interfaces typical of Keysight/Agilent microwave component architecture.
– Key Features
• Buffer amplifier topology for signal isolation and impedance matching
• Interchangeable within Agilent/Keysight RF and microwave product families
• Designed for integration into existing test and measurement frameworks
• Secondary market availability with tested functionality verification
• Cosmetic condition consistent with prior laboratory or production use
– Typical Applications
The 5086-7649 has been deployed in specialized measurement systems including the 84125C Microwave EMI Measurement System and the 85301B Antenna and Amplifier Radar Cross-Section Measurement System. Its buffering function supports signal path integrity in systems requiring precise RF/microwave signal conditioning and isolation.
– Compatibility & Integration
This buffer amplifier is interchangeable with other RF and microwave components within the Agilent/Keysight product portfolio, simplifying integration into existing laboratory and production test configurations. The component interfaces with standard RF connectors employed throughout Keysight’s microwave measurement ecosystem.
