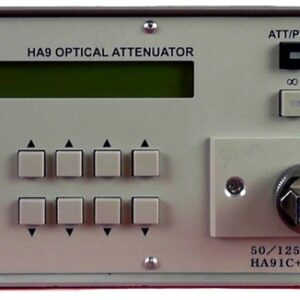

The JDS Uniphase HA9-Z040 is an extended range programmable optical attenuator delivering precise attenuation control across the C and L bands. It provides 0 to 100 dB attenuation with 0.01 dB resolution and repeatability, supporting wavelengths from 1200 nm to 1700 nm. The unit achieves ±0.1 dB accuracy and maintains wavelength dependence below ±0.05 dB across the 1530–1625 nm range, making it ideal for power meter testing, linearity calibration, fiber link loss simulation, and bit error rate measurements.
## Technical Specifications
• Attenuation range: 0 to 100 dB
• Resolution: 0.01 dB
• Repeatability: 0.01 dB
• Accuracy: ±0.1 dB
• Wavelength range: 1200 nm to 1700 nm (standard); 750 nm to 1700 nm optional (HA9W, 60 dB max)
• Wavelength dependence: <±0.05 dB (1530–1625 nm)
• Insertion loss (single-mode): 60 dB return
• Cavity effects: Virtually eliminated
• Input power: 90–240 V AC, 50–60 Hz
• Power consumption: 80 VA maximum
## Key Features
• Beam blocking switch provides fast transition to >90 dB attenuation from any setting
• Optional integrated couplers (2/98, 10/90, 30/70, 50/50 ratios)
• Optional 1:2 optical fiber switch (SW12)
• Front-panel universal connector adapters supporting FC/PC, SC/PC, ST/PC, FC/APC, and SC/APC
• 5 V rear panel output for external switch control
## Control Interfaces
• Front panel keypad
• GPIB (IEEE 488.2)
• RS232C
• SCPI/HP8156A compatible command set
• LabVIEW drivers supplied
• Software compatibility with HP 8157A attenuator
## Typical Applications
• Power meter calibration and verification
• Linearity testing
• Fiber optic link loss simulation
• Bit error rate curve measurement
• Erbium-doped fiber amplifier testing
