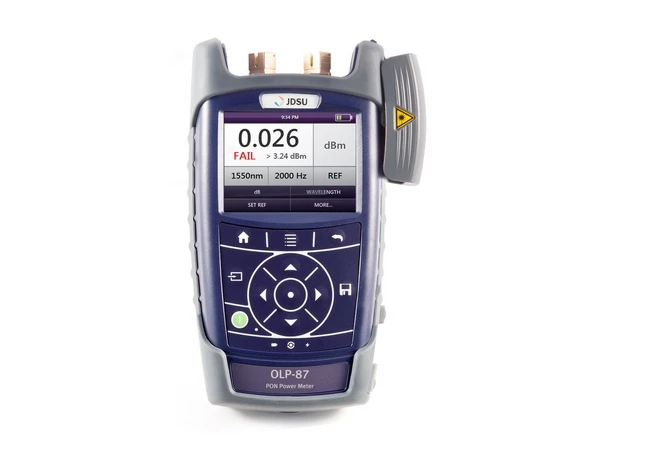

The OLP-87 (VIAVI) is a handheld optical power meter for field activation, troubleshooting, and maintenance of FTTx/PON networks. It delivers wavelength-selective power measurement across B-PON, E-PON, G-PON, XG(S)-PON, 10G-EPON, and NG-PON2 standards in a single portable unit. Through-mode capability enables simultaneous measurement of voice, data, and RF video signals without breaking the circuit.
## Technical Specifications
**Optical Performance**
• Downstream wavelengths: 1490 nm, 1550 nm, 1577/1578 nm
• Upstream wavelengths (burst mode): 1270 nm, 1310 nm, 1535 nm
• NG-PON2 wavelength-selective channels supported per model configuration
• Optical return loss: >60 dB
• Pass-through insertion loss: 1000
• Smart Reporter™ PC software for certification report generation
• Hands-free carrier included
• Weather-proof, rugged design
## Typical Applications
• PON network activation and field testing across all major standards
• Real-time signal monitoring during troubleshooting and maintenance
• Lab and field measurement environments
• Fiber end-face quality verification (with optional inspection module)
## Compatibility & Integration
Supports B-PON, E-PON, G-PON, XG(S)-PON, 10G-EPON, and NG-PON2 (TWDM) networks. Measurement data downloads via USB or Ethernet for post-analysis and documentation.
