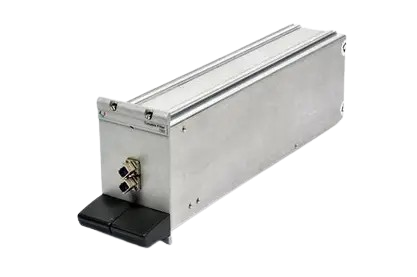

The JDSU MAPF+1GG001SU Tunable Filter TB3 is a tunable grating filter module engineered for precision optical test and measurement applications. This bandpass filter enables continuous wavelength selection across the C-band and L-band regions, delivering narrow optical bandwidth with low insertion loss and high out-of-band rejection. It suppresses amplified spontaneous emissions, isolates specific wavelengths, and supports critical measurements including OSNR analysis, BER testing, and amplifier characterization.
Technical Specifications
• Wavelength Range: 1420–1630 nm (extended); 1520–1630 nm (standard)
• Insertion Loss: <4.5 dB (1520–1630 nm); 45 dB
• Polarization Dependent Loss: <0.3 dB (1480–1630 nm)
• Polarization Mode Dispersion: 5 nm/s
• Wavelength Accuracy: ±0.2 nm
• Peak Search Accuracy: 45 dB
• Optical Shape: Gaussian (3/20 dB ratio: 0.31 ± 0.05)
• Input Power Handling: 300 mW (standard); 1000 mW (high power option)
• Connector Type: FC/PC
– Key Features
• Tunable bandpass filtering with 0.005 nm resolution for precise wavelength selection
• High rejection with Gaussian spectral shape and configurable bandwidths
• Integrated peak search function locates maximum transmission power within tuning range or user-defined window
• 10% tap option enables real-time power monitoring
• Minimal PDL and PMD for polarization-insensitive applications
– Typical Applications
• ASE suppression in optical amplifier chains
• Signal isolation and wavelength demultiplexing
• Amplifier gain and noise figure characterization
• OSNR measurement and optimization
• BER testing and signal quality assessment
– Compatibility & Integration
The TB3 module hot-swaps into JDSU MAP Series mainframes (MAP+2M00 and MAP+2B00 platforms) without system shutdown. The MAP-200 controller is LXI-compliant with Ethernet connectivity, GPIB, and RS-232 interfaces. Dynamic firmware automatically identifies installed cassettes and configures system operation.
