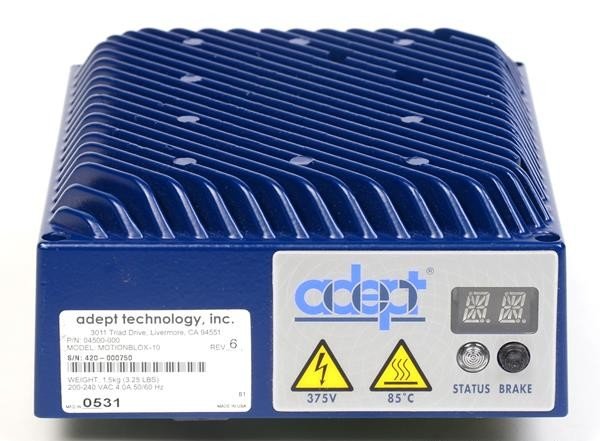

The OMRON / Adept Technology MotionBlox-10 is a distributed servo amplifier engineered for precision motion control in industrial automation systems. Mounted directly adjacent to the servo motor, it minimizes panel space and installation complexity while reducing cabling requirements. The unit features an on-board PowerPC or RISC microprocessor executing servo loops at 8 kHz, delivering enhanced path control and rapid settling performance. Communication occurs via IEEE 1394 protocol integrated into Adept’s SmartServo network, enabling real-time axis control without centralized amplifier infrastructure.
Technical Specifications
• Servo Loop Execution Rate: 8 kHz
• Processor: On-board PowerPC or RISC microprocessor
• Communication Protocol: IEEE 1394 (SmartServo network)
• AC Power Input: 200–240 V, single-phase, 50/60 Hz
• DC Power Supply: 24 VDC (supplied by PDU3)
• Internal Regenerative Dump Resistor: ~20 W nominal capacity
• Motor Compatibility: AC brushless servo motors in 100W, 200W, 400W, and 750W ratings
• Encoder: Absolute encoder, 65,536 counts per revolution (no homing required)
– Key Features
• Close proximity mounting to motor eliminates extended cable runs
• Brake application switch for motors equipped with electromagnetic brakes
• Integrated status indicator for operational monitoring
• Totally enclosed, naturally convection-cooled servo motors
• CE compliance and low-noise operation across motor range
• PDU3 integration providing AC filtering, surge protection, and CAT-3 E-Stop functionality
– Interfaces & Integration
• Motor connection via dedicated amplifier-to-motor cable
• Encoder connection for absolute position feedback
• Optional IO Blox remote I/O devices (eight optically isolated inputs/outputs per unit; up to four units daisy-chainable)
• IEEE 1394 SmartServo network for multi-axis coordination
– Typical Applications
Robotic arm actuation, multi-axis material handling, precision manufacturing processes, and distributed motion systems requiring real-time servo performance without centralized amplifier panels.
