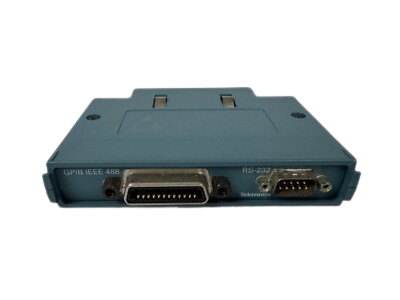

The Tektronix TDS3GM is a communication expansion module for TDS3000 series oscilloscopes that adds GPIB (IEEE-488.2) and RS-232-C interfaces for remote control, programming, and automated test integration. This module enables full command access to oscilloscope modes, settings, and measurements from external systems, along with waveform and measurement data transfer capabilities.
Technical Specifications
• GPIB Interface (IEEE-488.2): D-type shell connector; supports full talk/listen modes for complete oscilloscope control
• RS-232-C Interface: DB-9 male connector; supports full talk/listen modes; baud rate up to 38,400 bps
• Power: Draws power from host oscilloscope
– Key Features
• Full remote control of all oscilloscope modes, settings, and measurements
• Waveform and measurement data transfer for analysis and documentation
• Printer connectivity for hardcopy output via RS-232-C
• User-installable module with dual interface architecture
• Baud rate selection to 38,400 bps for serial communications
– Typical Applications
• Automated test sequences and system integration
• Remote oscilloscope operation from networked control systems
• Data logging and measurement archival
• Printer-driven hardcopy generation
• Instrument cluster management via GPIB networks
– Compatibility & Integration
Designed for TDS3000 series oscilloscopes including TDS3054, TDS3014B, and TDS3034B models. Compatible with EPICS (Experimental Physics and Industrial Control System) platforms for GPIB and serial connectivity. Supports WaveStar™ software integration.
