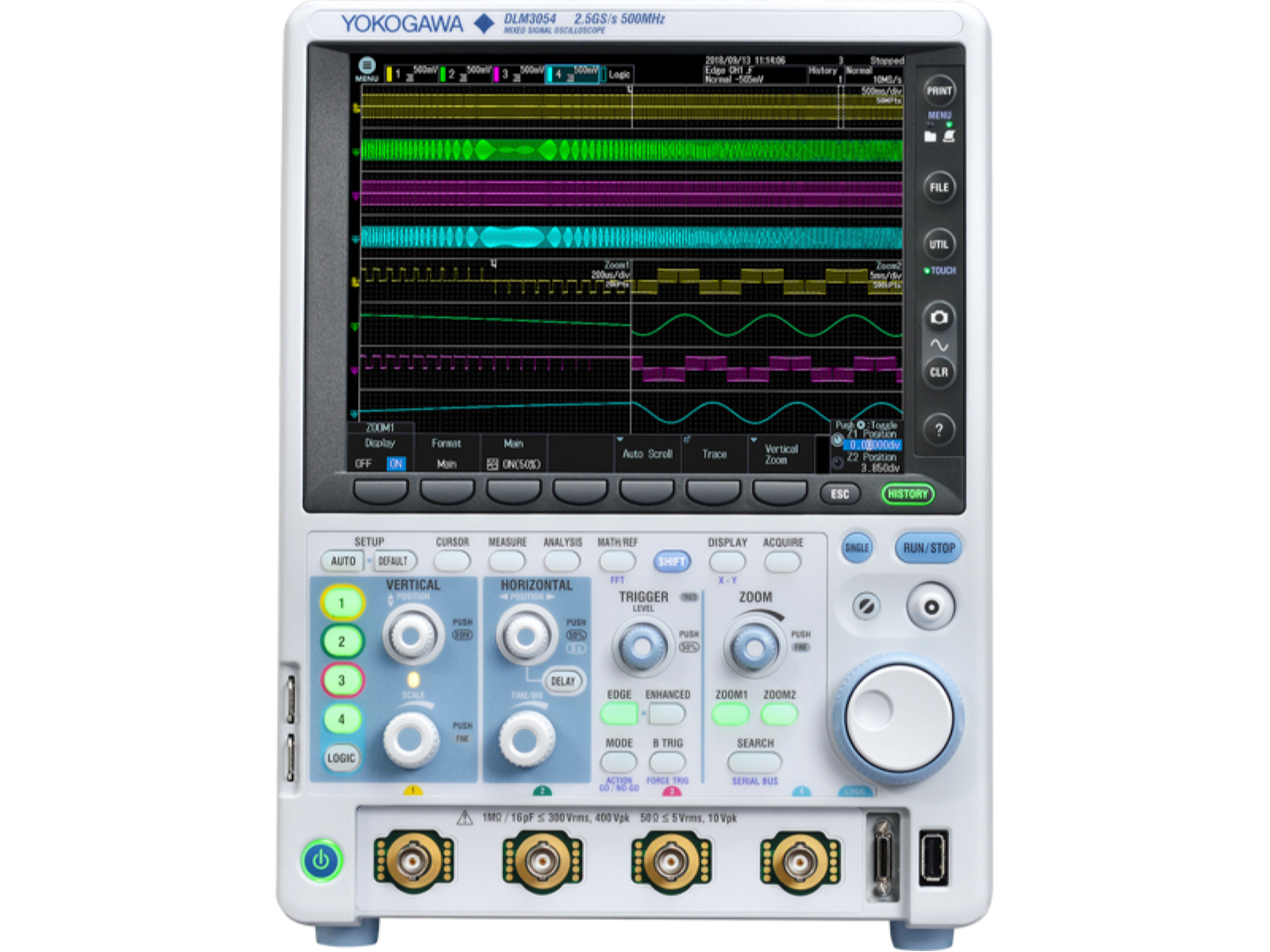

The Yokogawa DLM3054 is a 500 MHz mixed-signal oscilloscope that captures both analog and digital signals simultaneously. It delivers four analog channels plus an optional 8-bit logic analyzer, enabling observation of 11 total channels (3 analog + 8 logic). With a maximum sample rate of 2.5 GS/s and record lengths up to 500 Mpts (optional), this instrument excels at resolving complex waveforms in embedded systems, power electronics, and automotive applications. A fully digital trigger engine minimizes timing jitter while supporting 13 trigger modes including edge, pattern, pulse width, runt, and serial bus protocols. The 8.4-inch XGA touch display and dual-zoom processor enable rapid analysis across up to 500 Megapoints, while 30 simultaneous automated measurements and 100,000-waveform history function streamline debug workflows.
Technical Specifications
Analog Channels: 4 channels
Bandwidth: 500 MHz
Sample Rate: Up to 2.5 GS/s
Record Length: 12.5 Mpts (repeating), 125 Mpts (single interleave), or up to 500 Mpts (optional)
Logic Analyzer: Selectable 8-bit input on Channel 4
Display: 8.4-inch TFT color touch panel, 1024 × 768 XGA resolution
Input Coupling: AC, DC, DC50 Ω, GND
Input Impedance: 1 MΩ ±1.0% (20 pF), or 50 Ω ±1.5% (VSWR 1.4 or less, DC to 500 MHz)
Voltage Sensitivity: 2 mV/div to 5 V/div (1 MΩ), 2 mV/div to 500 mV/div (50 Ω)
DC Accuracy: ±(1.5% of 8 div + offset voltage accuracy)
Minimum Scale: 500 μV/div
Measurements: 30 simultaneous automated waveform parameters
FFT Analysis: 2 simultaneous functions with current or averaged waveforms
History Storage: 100,000 captured waveforms
– Key Features
• Fully digital trigger system with 13 modes: edge, edge OR, pattern, pulse width, rise/fall time, runt, timeout, window, window OR, interval, serial, TV, A delay B, and A to B(n)
• Dual-zoom processor for rapid magnification to 500 Megapoints
• Adjustable trigger hold-off
• Cursor measurements and FFT spectral analysis
• Simultaneous mixed-signal observation across analog and digital domains
– Typical Applications
• Embedded system development and debug
• Power electronics analysis
• Automotive electronics testing
• Digital-analog signal correlation
• Protocol-level serial bus analysis
– Compatibility & Integration
• Digital trigger supports installed serial bus options
• TV trigger modes: NTSC, PAL, SDTV, HDTV, user-defined
