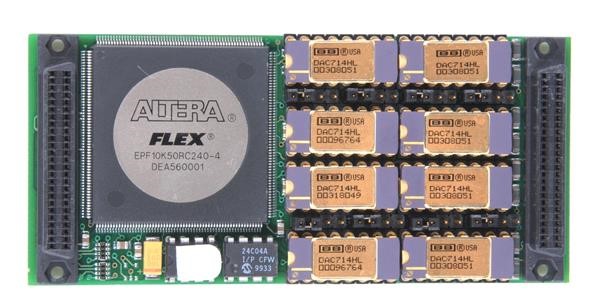

The Acromag IP236-8 is a 16-bit Digital-to-Analog output module delivering eight independent analog voltage channels for industrial control and automation systems. Each channel includes a 128-sample FIFO buffer with dedicated clock, enabling independent conversion rates, seamless waveform updates, and flexible triggering via software, external, or internal timer control. Output ranges are jumper-selectable at ±5V, ±10V, or 0 to 10V with maximum accuracy of ±0.0061% of 20V span (calibrated, 25°C, unloaded). The module achieves 100 kHz throughput across all eight channels and supports continuous, single, and external trigger modes for precise signal generation and synchronization across multiple modules.
Technical Specifications
Analog Output Performance
• 8 channels, 16-bit resolution
• Output ranges: ±5V, ±10V, 0 to 10V (jumper-selectable)
• Maximum throughput: 100 kHz total (10 µs per 8 channels), 100 kHz single channel
• System accuracy: ±0.0061% of 20V span maximum (calibrated, 25°C, unloaded)
• Output current: -5 mA to +5 mA
• Short circuit protection: Indefinite at 25°C
• Output at reset: 0V (bipolar), 5V (unipolar)
• 128-sample FIFO buffer per channel with independent DAC programming
Triggering & Control
• Trigger modes: Software, external, internal timer
• FIFO modes: Continuous (waveform cycling), Single (one value per trigger), External synchronization
• Interrupt capability supported
• External trigger output supported
Performance & Access
• All functions: 0 wait states (250 nS cycle)
• FIFO buffer write: 2 wait states (500 nS cycle)
• Interrupt read/write: 2 wait states (250 nS cycle)
Environmental & Power
• Operating temperature: 0°C to 70°C (standard); -40°C to 85°C (extended)
• Storage temperature: -55°C to 125°C
• Relative humidity: 5% to 95% non-condensing
• Power: +5V ±5% (250 mA max), ±12V ±5% (210 mA max)
– Key Features
• Independent per-channel FIFO buffers enable asynchronous, multi-rate output waveforms
• On-the-fly output updates without waveform interruption in continuous mode
• External trigger output for cross-module synchronization
• Direct register and FIFO loading for minimal latency
– Typical Applications
• Waveform and function generation in automated test systems
• Real-time process control requiring precise, synchronized analog outputs
• Multi-channel signal simulation and hardware-in-the-loop testing
– Compatibility & Integration
Designed for Industry Pack (IP) carrier systems compliant with ANSI/VITA 4-1995. Supports IOSel, IDSel, and INTsel data transfer cycle types. Software support packages available from Acromag.
