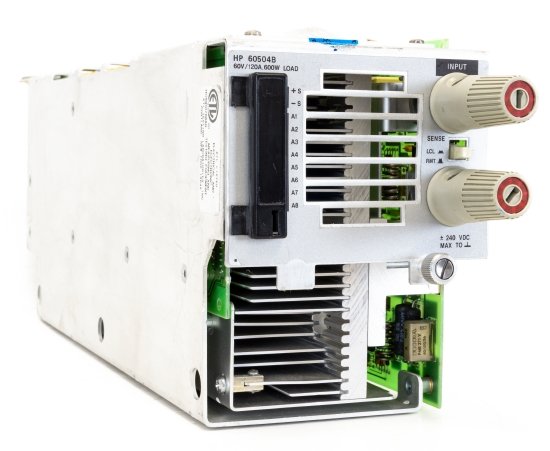

The Agilent/Keysight 60504A is a 600 W DC electronic load module engineered for integration into compatible Keysight mainframes. It delivers independent operation across Constant Current (CC), Constant Voltage (CV), and Constant Resistance (CR) modes, with dedicated capabilities for open circuit and short circuit testing. The module accepts input voltage from 3 V to 60 V and supports current loads up to 120 A across two selectable ranges: 0–12 A and 0–120 A. Resistance operation spans three ranges: 0.017 Ω to 0.5 Ω, 0.5 Ω to 500 Ω, and 5 Ω to 5000 Ω.
Technical Specifications
• Power Rating: 600 W
• Voltage Range: 3 V to 60 V
• Current Ranges: 0–12 A and 0–120 A
• Resistance Ranges: 0.017–0.5 Ω, 0.5–500 Ω, 5–5000 Ω
• Load Regulation: 10 mA
• Operating Conditions: Up to 95% relative humidity, altitudes to 2000 m
• Protection: Over-current, over-voltage, overpower, over-temperature, and reverse polarity
• Safety Classification: Class 1 (requires protective earth ground)
• Weight: 13 lbs
– Key Features
• Pulse Generator: Built-in dynamic test capability with programmable amplitude, frequency, duty cycle, and slew rate. Six triggering methods provide synchronization control.
• Control Interface: GPIB programming of current, voltage, and resistance settings with readback of actual input voltage and current. Analog voltage control available in constant current mode.
• Setup Memory: Save and recall up to seven complete instrument configurations, with one designated for automatic recall at power-on.
– Typical Applications
DC power source evaluation, battery testing, power component characterization, and transient response analysis in research, development, and manufacturing environments.
– Compatibility & Integration
Designed for integration into the Keysight 6050A (1800 W, 6-slot) and 6051A (600 W, 2-slot) Electronic Load Mainframes.
