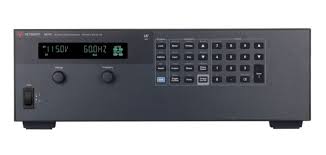

The Keysight 6811C is a dual-function AC/DC power source and integrated analyzer for precision power testing and waveform simulation. It synthesizes arbitrary AC waveforms and DC bias across a wide voltage range while simultaneously measuring voltage, current, power, and harmonic content in real time. The instrument integrates power amplification, arbitrary waveform generation, and multi-domain analysis—equivalent to a multimeter, oscilloscope, and harmonic analyzer—into a single benchtop unit. Built-in protection against overvoltage and overpower conditions safeguards connected loads. Communications via LXI-LAN, USB, GPIB, and RS-232 enable remote control and data acquisition in development, qualification, and compliance test environments across avionics, telecommunications, and consumer electronics sectors.
Technical Specifications
AC Output
• Maximum power: 375 VA
• Voltage range: 0 to 300 Vrms
• Current (RMS): 3.25 A; (Peak): 40 A
• Frequency range: DC; 45 Hz to 1 kHz
DC Output
• Maximum power: 285 W
• Voltage range: +/−425 V
• Current (RMS): 2.5 A; (Instantaneous): 40 A
Measurement Capabilities
• RMS, DC, and AC + DC voltage and current
• Peak voltage and current
• Real, apparent, and reactive power
• Harmonic analysis through the 50th harmonic (amplitude and phase)
• Total Harmonic Distortion (THD)
• Triggered digitized waveform acquisition
Physical & Environmental
• Dimensions: 574.7 × 425.5 × 132.6 mm
• Weight: 33 kg
• Input: 104−127 VAC (6811C/120 model)
• Operating altitude: up to 2000 m
• Max relative humidity: 85%
• Safety Class: IEC I (requires earth ground connection)
– Key Features
• Overvoltage and overpower protection
• Arbitrary waveform synthesis for power line simulation and distortion testing
• Multi-domain analysis in a single instrument
• Standard LXI-LAN, USB, and GPIB interfaces plus RS-232
– Typical Applications
Product development and validation, power supply and battery charger testing, power quality assessment, harmonic compliance verification, industrial equipment qualification.
– Compatibility & Integration
LXI-LAN, USB, GPIB, RS-232.
