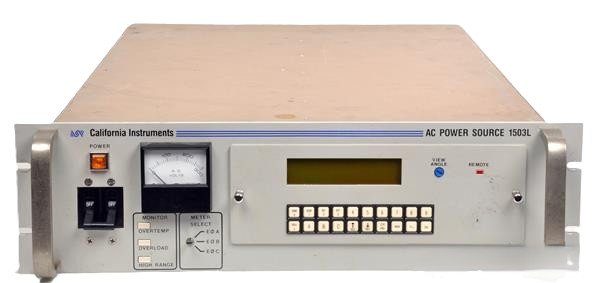

The Ametek/Elgar/California Instruments 1503L-3P is a programmable AC power supply delivering 1500 VA (1667 VA at 35°C ambient) with selectable single or three-phase output. It generates sinusoidal waveforms from 17 Hz to 5 kHz with voltage ranges of 0–135 VAC or 0–270 VAC (L-N) and output current up to 4.1 A rms in three-phase mode. The unit operates from 115/230 VAC single-phase input and supports constant voltage, constant current, and constant power modes with ±0.5% accuracy on both voltage and current. An integrated programmable controller (standard with -P option) enables IEEE-488 bus control, ATLAS-based programming, and automated transient generation. Total harmonic distortion stays below 0.5%, and comprehensive readback includes RMS voltage and current, power, apparent power, power factor, frequency, and phase measurements via digital LCD display.
Technical Specifications
• Power Rating: 1500 VA (1667 VA at 35°C ambient)
• Input: 115/230 VAC, single-phase, 47–440 Hz
• Output Voltage: 0–135 VAC or 0–270 VAC (L-N); selectable via MODE option
• Output Current (135 V, 3-phase): 4.1 A rms, 9.3 A peak (repetitive), 10 A peak (non-repetitive inrush)
• Output Frequency: 17 Hz to 5 kHz (45 Hz to 2 kHz with -3P controller); 45 Hz to 5 kHz alternate range
• Waveform: Sinusoidal
• Total Harmonic Distortion: < 0.5%
• Voltage Accuracy: ±0.5%
• Current Accuracy: ±0.5%
• Power Factor Range: 0 to 1
• Dimensions: 19" W × 7" H × 22" D
• Weight: 45 lbs
– Key Features
• Selectable 1 or 3 phase output without rewiring (MODE option)
• Programmable controller with IEEE-488 bus control and RS232/VXI/MXI translator compatibility
• Abbreviated Plain English and ATLAS-based programming
• Constant voltage, constant current, and constant power operating modes
• Programmable transients over time or cycles
• Automatic remote calibration and comprehensive self-tests
• Real-time readback of voltage, current, power, apparent power, power factor, frequency, and phase
• Front panel control with knobs, buttons, and digital display
– Optional Features
• -AX Option: Isolated 26 VAC regulated output (±2% accuracy, 3 A rms capacity, 360/440 Hz) and 5 VAC unregulated output (±5% accuracy) for auxiliary supply applications
– Applications
Power conditioning verification, electronic device performance testing across variable line conditions, three-phase load simulation, and transient response analysis.
