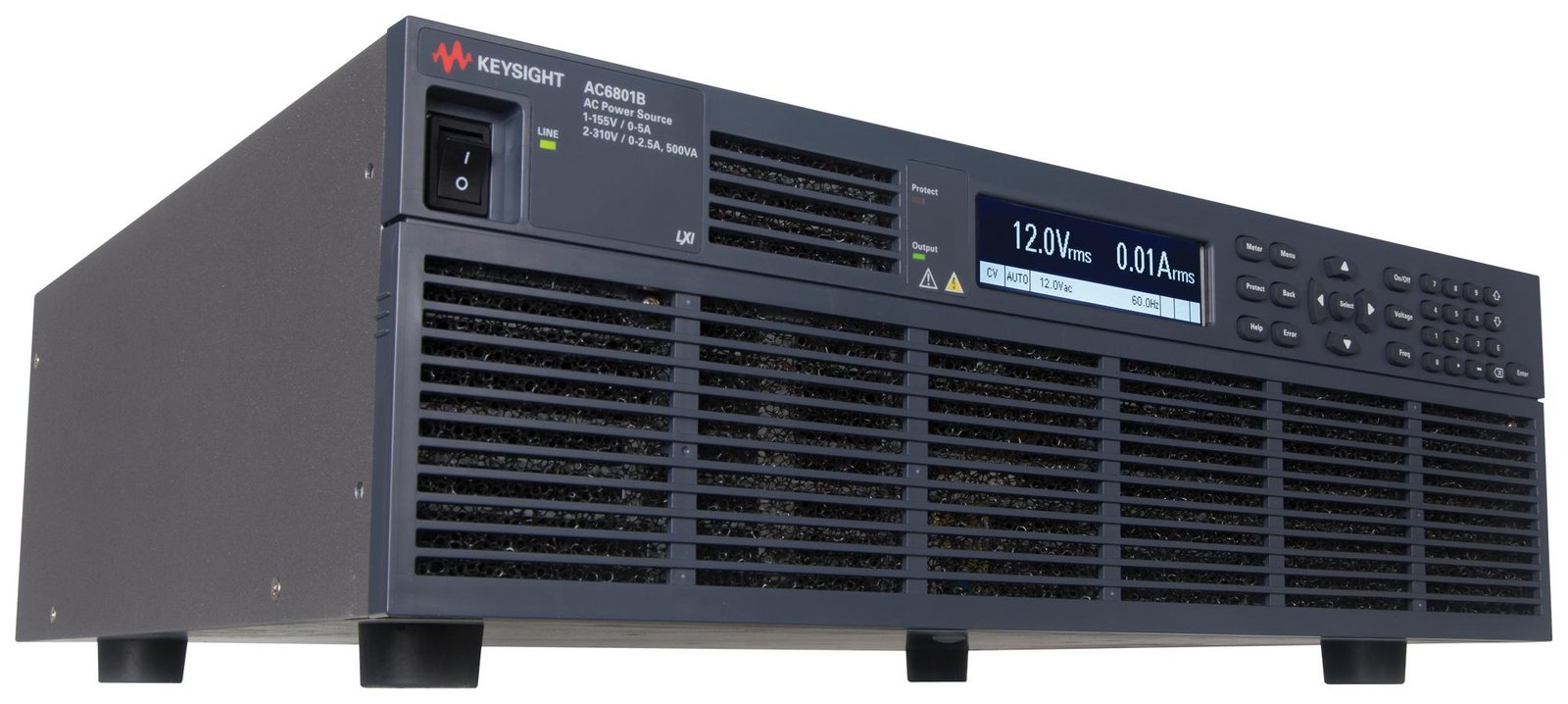

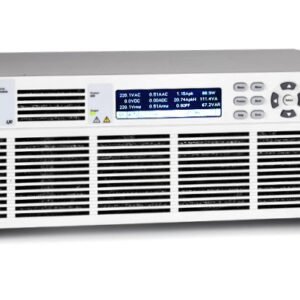

The Keysight AC6801B is a 500 VA AC power source engineered for testing and evaluation of electronic devices across diverse power conditions. It delivers stable, programmable output across dual voltage and current ranges, with maximum peak currents reaching 15 A at 155 Vrms and 7.5 A at 310 Vrms. The instrument operates from 40 Hz to 500 Hz and includes DC output capability up to 400 W, making it suitable for both AC and DC testing scenarios. Built-in measurement functions capture voltage, current, and power in AC, DC, and AC+DC modes, with inrush current characterization via phase-angle control. Remote sensing and programmable output enable precise power conditioning for real-world simulation including non-ideal networks, voltage fluctuation, and transient spike injection.
Technical Specifications
AC Output
• Maximum power: 500 VA
• Voltage ranges: 155 Vrms (low), 310 Vrms (high)
• Current ranges: 5 A (low), 2.5 A (high)
• Peak current: 15 A @ 155 Vrms; 7.5 A @ 310 Vrms
• Frequency range: 40 Hz to 500 Hz
DC Output
• Maximum power: 400 W
• Voltage ranges: 219 V (low), 438 V (high)
• Current ranges: 4 A (low), 2 A (high)
Measurement Capability
AC, DC, and AC+DC measurement modes. Inrush current measurement via phase-angle control.
Physical
• Dimensions: 368 mm × 429 mm × 128 mm
• Weight: 11 kg
– Key Features
• Programmable output with remote sensing
• N6700 style user interface
• Transient and voltage sag/swell simulation
• Dual-range voltage and current switching
– Typical Applications
Universal power supply testing, avionic electronics (400 Hz operation), commercial light drivers and ballasts, AC power adapters, LED lighting ballast characterization.
– Compatibility & Integration
Standard interfaces: LAN/LXI Core, USB. Optional GPIB. Class 1 safety-grounded instrument. Requires 20 cm clearance (front and rear) for airflow.
