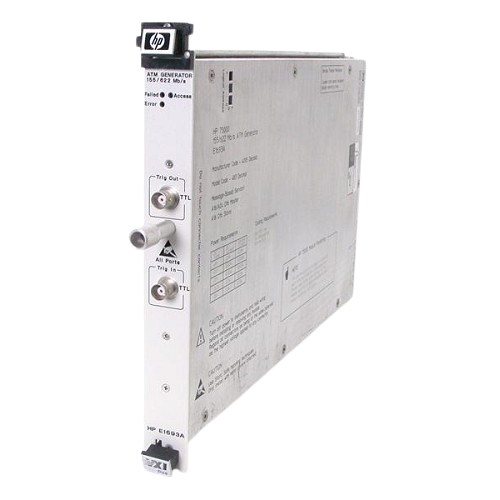

The Agilent/Keysight E1693A is a 1-slot, C-size VXI module designed as a 155/622 Mb/s ATM Generator within the Broadband Series Test Systems (BSTS). It functions as a probe accessory that establishes reliable connections between logic analyzers and devices under test, enabling accurate signal capture and analysis in asynchronous transfer mode (ATM) network environments.
Technical Specifications
• Form Factor: 1-slot, C-size VXI module
• Connector Interface: 90-pin cable connector
• Data Rate Support: 155 Mb/s and 622 Mb/s ATM
• Series: Broadband Series Test Systems (BSTS)
– Key Features
• Modular VXI architecture for integrated test system deployment
• Dual-rate ATM signal generation at standardized speeds
• Precision connection interface for repeatable, low-noise signal acquisition
• Designed for high-speed data communication analysis
– Typical Applications
• ATM network protocol validation and compliance testing
• High-speed serial data signal capture and characterization
• Device under test signal integrity analysis
• Broadband network infrastructure testing
– Compatibility & Integration
The E1693A integrates into Agilent/Keysight logic analyzer systems utilizing VXI modular architecture and 90-pin cable connector interfaces. Installation within compatible VXI chassis enables seamless integration into existing test platforms designed for ATM and broadband signal analysis workflows.
