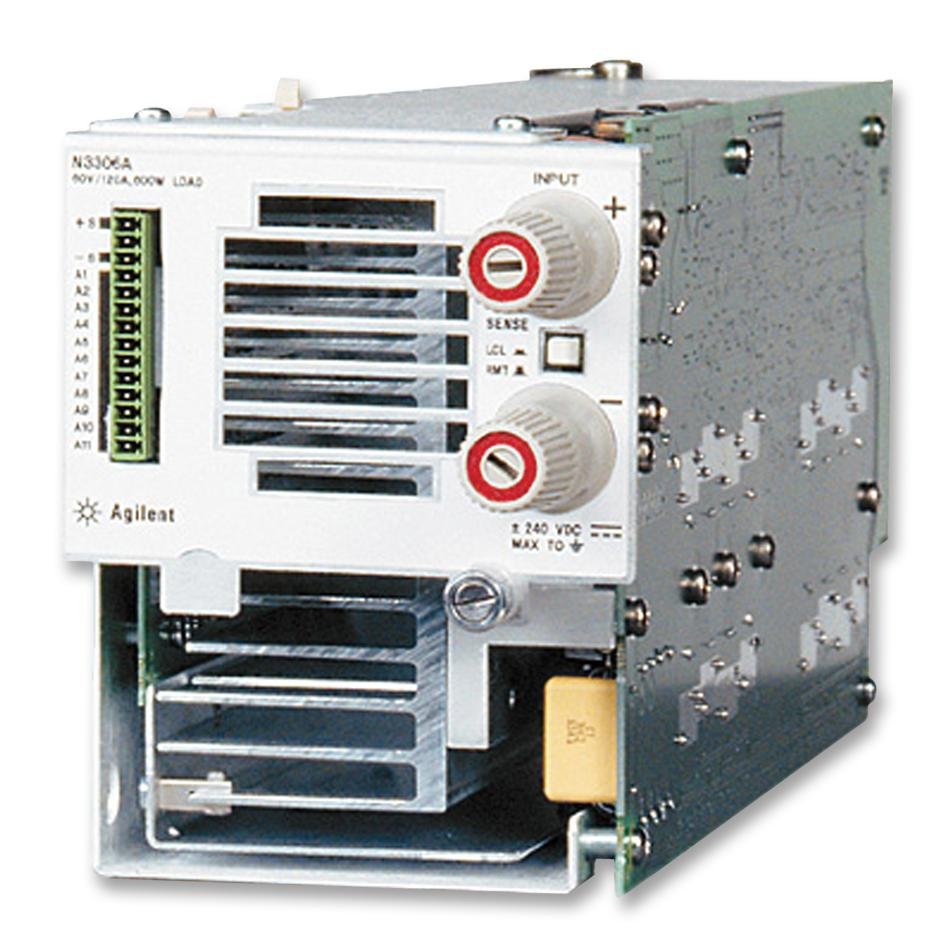

The Agilent/Keysight N3306A is a 600 W single-channel DC electronic load module engineered for testing and characterization of DC power sources and components. Operating across 0–60 V and 0–120 A, the N3306A delivers four independent operating modes—constant current, constant voltage, constant resistance, and constant power—enabling validation of power supply designs, component characterization, and product reliability verification in research, development, and manufacturing settings.
Technical Specifications
• Power Rating: 600 W
• Voltage Range: 0 V to 60 V
• Current Range: 0 A to 120 A
• Operating Modes: Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CP)
• Form Factor: Modular load element for N3300A series mainframes
– Key Features
• Four independent load modes accommodate diverse test scenarios and transient characterization
• Single-channel architecture simplifies integration into modular test systems
• Designed for insertion into compatible N3300A series mainframes
• Local and remote control via mainframe interface and SCPI command set
– Typical Applications
• Power supply design validation and performance characterization
• DC source testing and load profiling
• Component reliability assessment under varied load conditions
• Battery and energy storage system evaluation
• Thermal and transient response analysis
– Compatibility & Integration
The N3306A operates as a plug-in module within the Agilent/Keysight N3300A series modular electronic load mainframe. Control and monitoring are managed through the host mainframe’s front panel or remote interface, supporting GPIB, LAN, and USB connectivity depending on mainframe configuration. System dimensions and overall weight depend on the selected mainframe platform.
