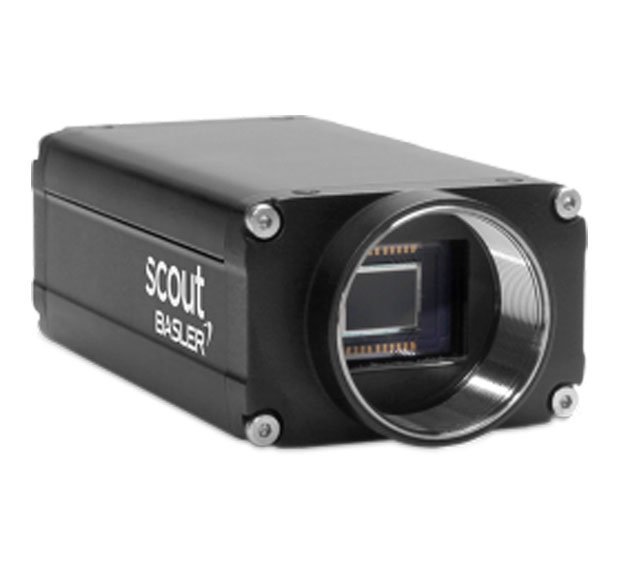

Basler scA1400-30fm Scout Area Scan Camera

The Basler scA1400-30fm Scout is a monochrome area scan camera built for industrial image acquisition in demanding environments. It combines a Sony ICX285 progressive scan CCD sensor with FireWire-b connectivity to deliver 1392 × 1040 pixel images at 30 fps. The camera operates across 8–36 VDC and draws 3.7 W typical power, making it suitable for battery-backed or distributed power architectures. Its 2/3 inch optical format, 6.45 µm square pixels, and global shutter enable precise timing control for synchronized multi-camera systems. The 12-bit sensor captures data in multiple output formats: Mono 8, Mono 16, Mono 12 Packed, and YUV 4:2:2 variants. Exposure and synchronization are programmable via the 1394 bus, supporting external trigger, free-run, and bus-controlled modes. With 63.0% quantum efficiency at 545 nm, 41.1 dB SNR, and 53.2 dB dynamic range, the camera delivers reliable signal integrity in variable lighting. Dark noise measures 28.7 e⁻ and saturation capacity reaches 13 ke⁻. The compact housing—73.7 × 44.0 × 29.0 mm, 160 g—accepts standard C-mount lenses and achieves IP30 protection when the lens mount is covered. Operating temperature spans 0–50 °C. Two digital inputs and four digital outputs support external synchronization and event signaling. The camera conforms to GenICam, EMVA 1288, and DCAM standards, with full driver support through Basler’s pylon software package. CE, RoHS, and FCC certification confirms regulatory compliance.
