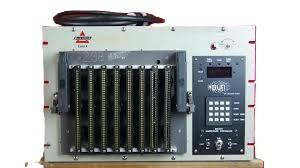

The Delta 2300C is a thermal sub-system designed for burn-in and system-level testing of integrated circuits. It is manufactured by Delta Design, a company that specializes in pick-and-place semiconductor test handlers and thermal sub-systems. This unit is engineered to provide precise temperature control in demanding testing environments.
### Technical Specifications
**Temperature Control**
* **Temperature Range:** 315 Degrees Celsius
* **Temperature Resolution:** 0.1°
* **Soak Time Resolution:** 1 minute
* **Soak Time Duration:** 1-9999 minutes
* **Process Deviation Limits:** ±2.0 to ±799.9°
* **Program Segments:** 30
* **Program Repeats:** 0-9999
**Cooling**
* **Cooling Method:** CO2
* **CO2 Pressure:** 100 PSI Max
**Power Requirements**
* **Voltage:** 120 Volt
* **Wattage:** 1800 Watts
* **Amperage:** 20 A
**Physical Dimensions**
* **Interior Dimensions:** 8″ x 8″ x 10″
* **Exterior Dimensions:** 39″ (Height) x 33″ (Width) x 25″ (Depth)
### Why Choose Aumictech for Delta 2300C?
At Aumictech, we specialize in supplying high-end thermal test equipment. Whether you need precise temperature cycling for semiconductor qualification, reliable burn-in testing capabilities, or robust solutions for harsh environment simulations, our team ensures the Delta 2300C delivers maximum performance for your application.
