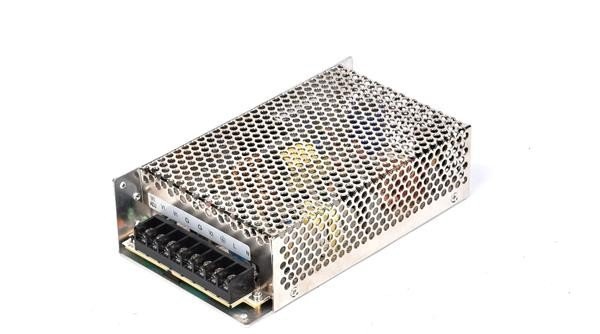

The Advanced Power Solutions RP1150-24C is a 150 W single-output industrial switching power supply engineered for demanding operational environments. It delivers regulated 24 V at 6.25 A through a convection-cooled, ruggedized enclosure. The unit accepts universal AC input (85–264 VAC, 47–63 Hz) or DC input (127–280 VDC), making it adaptable across global power infrastructure. Tight line and load regulation of ±1%, combined with ±1% typical ripple and noise, ensures stable 24 V delivery to industrial control and automation equipment.
Technical Specifications
Electrical Performance
• Output: +24 V at 6.25 A (150 W)
• Input: 85–264 VAC or 127–280 VDC; 47–63 Hz
• Line Regulation: ±1% maximum
• Load Regulation: ±1% typical
• Ripple & Noise: ±1% typical peak-to-peak @ 20 MHz
• Efficiency: Up to 80%
• Hold-Up Time: 16 ms @ 110 VAC minimum
• Leakage Current: <750 µA @ 230 VAC
Protection & Control
• Overload Protection: 105–120% max. power (latch)
• Overvoltage Protection: 115–140% (latch)
• Output Voltage Adjustment: ±10%
• Inrush Current: 20 A @ 115 VAC / 40 A max @ 230 VAC (cold start)
• Typical Input Current: 4 A @ 115 VAC / 2 A @ 230 VAC
Environmental & Physical
• Operating Temperature: 0–50°C full load; derate 2.5% per °C above 50°C to 70°C maximum
• Storage Temperature: -40°C to +85°C
• Temperature Coefficient: 0.04% per °C
• Dimensions: 7.48 × 4.17 × 1.73 inches
• Cooling: Convection cooled
– Key Features
• Ruggedized enclosure rated for harsh industrial environments
• Wide universal AC/DC input acceptance
• Compact single-output architecture
• Adjustable output voltage for system integration flexibility
• UL/cUL60950, EN60950, and CE Mark (LVD) certified
• EN55022 / FCC Class B emissions compliance
• RoHS-compliant versions available (indicated by "-LF" suffix)
– Typical Applications
• Industrial control systems and PLC power
• Factory automation equipment
• Building management systems
• Process monitoring and instrumentation
• Distributed 24 V rail conditioning
– Compatibility & Integration
The RP1150-24C integrates into systems requiring single 24 V rails with tight regulation. Its wide input voltage acceptance eliminates the need for multiple SKUs across different geographic regions. Output voltage adjustment capability supports legacy system integration and field calibration requirements.
