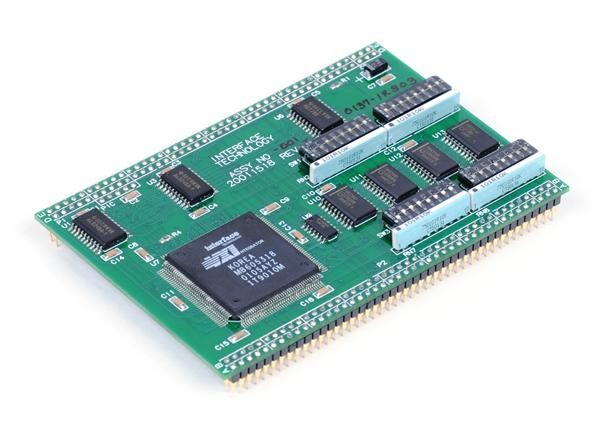

The Interface Technology DT9110 is a daughter card that adds register-based VXI interface capability to VXIbus data acquisition systems. Built around the IT9010 VXIntegrator chip, it integrates essential VXI interface elements into a compact 13.5 square inch form factor compatible with B-size, C-size, and D-size VXI modules. The card implements all VXI specification configuration registers—including Device Dependent and A24/A32 VMEbus registers—and provides high current buffers for direct VME/VXI backplane signal driving plus integrated interrupt generation circuitry. Supply current is 300 mA @ 5 V. The DT9110 operates from 0 °C to +50 °C and is suitable for OEM integration, custom development, and laboratory or industrial applications requiring VXI protocol support.
## Technical Specifications
• **Core Technology:** IT9010 VXIntegrator chip
• **Interface Type:** Register-based VXI interface
• **Board Area:** 13.5 square inches
• **Board Thickness:** 0.062 inches
• **Component Height:** Up to 0.30 inches
• **Module Compatibility:** B-size, C-size, and D-size VXI modules
• **Hole Spacing:** 0.100 inches
• **Hole Diameter:** 0.042 ± 0.003 inches
## Electrical Characteristics
• **Supply Voltage:** 4.75 V to 5.25 V (nominal 5.0 V)
• **Input Logic Levels:** Vih 2.2 V (min), Vil 0.8 V (max)
• **Supply Current:** 300 mA @ 5 V
• **Output Current Ratings:** Standard ±40 mA, Medium Drive ±40 to +80 mA, High Drive ±90 to +180 mA, Open-Collector -128 mA, Bidirectional I/O1 ±48 mA, Bidirectional I/O2 ±128 mA
• **Absolute Maximum Supply Voltage:** GND – 0.5 V to 6.0 V
• **Operating Temperature:** 0 °C to +50 °C
• **Storage Temperature:** -40 °C to +70 °C
## Key Features
• High current buffers for direct VME/VXI backplane signal driving
• Complete VXI specification register implementation
• Interrupt generation circuitry
• Compact footprint preserving significant design space on host module
## Compatibility & Integration
Designed for VXIbus-compliant systems and compatible with VXI prototyping modules such as the Interface Technology BB9210.
