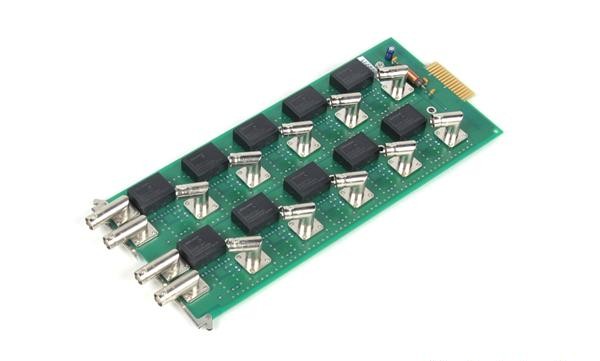

The Keithley 7062 is a dual-channel RF switching card that routes signals across five independent paths per switch. Housed on a single plug-in card compatible with 7001 and 7002 mainframes, it delivers two independent 1-pole, 5-throw switches with 50 Ω characteristic impedance and 500 MHz bandwidth. The card supports signal levels up to 24 V, 50 mA, and 0.5 W, with contact resistance below 2 Ω and contact potential under 20 µV. Insertion loss remains below 0.1 dB up to 20 MHz, below 1.0 dB to 250 MHz, and below 3.0 dB to 500 MHz. Channel-to-channel isolation exceeds 75 dB below 20 MHz, 55 dB below 250 MHz, and 60 dB below 500 MHz. Switch-to-switch isolation surpasses 80 dB below 20 MHz, 70 dB below 250 MHz, and 60 dB below 500 MHz. Propagation delay is under 2 ns with actuation and release times of 10 ms and 5 ms respectively. BNC connectors interface with external RF paths. Contact life exceeds 10⁶ cold-switching closures or 10⁵ closures at maximum signal levels. An expansion connector enables cascading for larger switch matrices. Coaxial design provides inherent shielding and noise immunity while maintaining signal integrity across the measurement bandwidth.
## Technical Specifications
• **Switching Configuration:** Two independent 1-pole, 5-throw switches
• **Channels per Switch:** 5
• **Characteristic Impedance:** 50 Ω
• **Bandwidth:** 500 MHz
• **Insertion Loss:** <0.1 dB (DC–20 MHz) | <1.0 dB (–250 MHz) | 75 dB (–20 MHz) | >55 dB (–250 MHz) | >60 dB (–500 MHz)
• **Switch Isolation:** >80 dB (–20 MHz) | >70 dB (–250 MHz) | >60 dB (–500 MHz)
• **Contact Resistance:** <2 Ω (input to output)
• **Contact Potential:** <20 µV
• **Propagation Delay:** 10⁶ closures (cold switching) | >10⁵ closures (at maximum signal)
• **Actuation Time:** 10 ms
• **Release Time:** 5 ms
• **Relay Drive Current:** 100 mA (typical)
• **Connector Type:** BNC
## Key Features
• Dual independent switch architecture minimizes cross-channel crosstalk
• Low insertion loss and high isolation enable precision RF measurements and automated signal routing
• Cascade expansion connector supports multi-card configurations
• Coaxial switching geometry maintains 50 Ω impedance matching and reduces reflections
• Sub-2 ns propagation delay suits time-sensitive applications
• Contact life rated for manufacturing throughput and research cycling demands
## Typical Applications
• Automated RF signal routing in test and measurement systems
• Multi-point data acquisition and component characterization
• Manufacturing test fixtures requiring reliable switch performance
• Research environments needing low-loss, high-isolation signal selection
## Compatibility & Integration
The 7062 card inserts into Keithley 7001 and 7002 Switch Mainframes. Expansion connectors permit series connection to build larger switching matrices without external relays or amplifiers.
