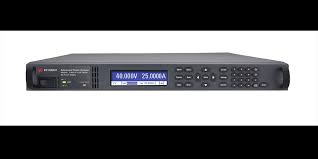

The Keysight (Agilent) N6951A Advanced Power System is a 1 kW, single-channel DC power supply engineered for demanding automated test equipment (ATE) applications. Built on Keysight’s VersaPower architecture, it delivers accelerated test throughput—up to 100 times faster than standard system power supplies—with precise voltage and current control across 0 to 20 V DC and 0 to 50 A DC. The instrument combines high-resolution measurement capabilities, programmable waveform generation, and flexible triggering to meet the rigorous demands of R&D, manufacturing, and complex test environments.
Technical Specifications
• Output Power: 1000 W, single-channel
• Voltage Range: 0 to 20 V DC
• Current Range: 0 to 50 A DC
• Input Voltage: 240 VAC (nominal)
• Ripple and Noise: < 9 mVpp residual ripple
• Programming Resolution: 14 bits (voltage and current)
• Measurement Resolution: 18 bits (voltage and current)
• Voltage/Current Response Time: 3 ms up / 3 ms down
• Transient Settling Time: 100 µs
• Command Processing Speed: < 2 ms
• Two-Quadrant Operation: 10% rated current (standard); 100% rated current with N7909A Power Dissipator Unit
– Key Features
• DMM-like dual voltage and current measurement with extended data logging capability (Option 302)
• Programmable arbitrary waveform generation and output list functionality (Option 303)
• Configurable slew rate, output bandwidth, and output resistance simulation
• Programmable digitizer sample rates for voltage and current waveform capture
• Advanced trigger options including list-paced triggers for synchronized multi-step sequences
• Optional output relays for disconnect and polarity reversal (Options 760 & 761)
• Power, peak power, watt-hour, and amp-hour measurements
– System Integration and Connectivity
• GPIB (IEEE-488), LAN (LXI-Core), and USB interfaces
• Web interface, Telnet, and socket support
• Interface lockout capability
• Parallel operation up to 10 kW total with multiple N6900 series supplies
• Multi-device sequence control for synchronized on/off switching
