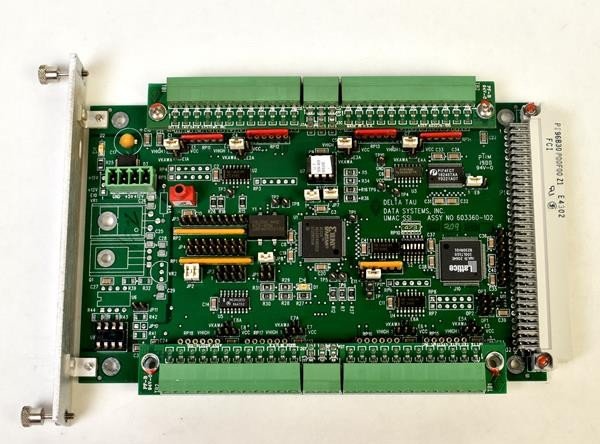

The ACC-53E is a Synchronous Serial Interface (SSI) Encoder Interface Board for Omron and Delta Tau motion control systems. It decodes SSI encoder data from Gray Code style encoders and converts synchronous serial signals into 12 or 24-bit parallel binary words for high-precision position and velocity feedback. The board integrates with UMAC and Ultralite/MACRO Station controllers via the high-speed JEXP expansion bus and mounts in an industrial 3U rack system.
Technical Specifications
• Function: SSI Encoder Interface Board
• Encoder Type: Gray Code Style SSI encoders
• Data Output: 12 or 24-bit parallel binary word
• Channel Capacity: Up to 8 channels per board
• Communication Bus: High-speed JEXP expansion bus
• Configuration: DIP switch settings for address allocation; SIP resistors or jumpers as required
– Key Features
• Plugs directly into industrial 3U rack systems for UMAC and MACRO Station deployments
• Scalable multi-board configuration: up to 4 boards on UMAC systems (32 total channels); single board maximum on MACRO Station (8-channel servo data limitation)
• Processes encoder feedback for motion control, commutation of brushless and AC induction motors
• Field-configurable via DIP switches and jumper settings prior to installation
– Typical Applications
• High-precision position feedback in multi-axis motion systems
• Velocity feedback and closed-loop servo control
• Brushless and AC induction motor commutation
• Distributed encoder channel expansion in industrial automation
– Compatibility & Integration
• Controllers: Omron/Delta Tau UMAC, Ultralite/MACRO Station
• Expansion Architecture: JEXP bus; supports cascaded ACC-53E boards for channel expansion
• Encoder Interface: Synchronous Serial Interface (SSI) input
