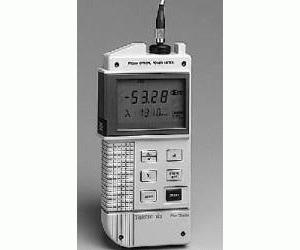

The Tektronix TFC200 is a handheld optical power meter for measuring optical power levels across fiber optic networks. It performs absolute power measurements, link loss analysis, threshold testing, and real-time power level monitoring in telecommunications, CATV, and LAN environments. The instrument supports both singlemode and multimode fibers up to 200 µm core diameter with 0.3 NA, delivering ±3% accuracy (±0.1 dB) across a dynamic range of +10 dBm to -70 dBm. A large backlit LCD display ensures readability in direct sunlight and low-light conditions, while intuitive controls enable field operations without extensive training.
Technical Specifications
• Spectral Range: 750 nm to 1700 nm
• Calibrated Wavelengths: 780, 820, 850, 1060, 1300, 1310, 1550 nm
• Dynamic Range: +10 dBm to -70 dBm
• Accuracy: ±3% (±0.1 dB); typical accuracy 1% at -20 dBm, 20°C, calibrated wavelengths
• Readout Resolution: 4 digits, 0.01 dBm
• Display: Large backlit LCD, 6.98 × 5.08 cm
• Operating Temperature: -10°C to +45°C
• Storage Temperature: -30°C to +75°C
• Humidity: 5 to 95% RH (non-condensing)
• Operating Altitude: 4,500 m (15,000 ft.)
• Dimensions: 9.5 cm (L) × 3.3 cm (W) × 20.1 cm (H)
• Weight: 0.45 kg (1 lb)
• Power: 9 V alkaline (28 hr. battery life) or 7.2 V NiCad rechargeable (8 hr. battery life)
– Key Features
• Absolute power measurements in dBm or Watts, unaffected by ambient light
• Link loss measurement via transmitter/receiver power comparison with stored reference
• Threshold testing with selectable dB limits and audible GO/NO GO indication
• Analog output port for external power stability recording
• Measurement averaging function
– Fiber Compatibility
All singlemode and multimode fibers up to 200 µm core diameter, 0.3 NA.
