The Tektronix TPP1000 is a 1 GHz passive voltage probe engineered for precision signal acquisition across low-power devices, manufacturing test, and research environments. Operating at a 10X attenuation ratio with input capacitance of 3.9 pF, it delivers minimal circuit loading—critical for high-speed measurements. The probe accepts maximum input voltage of 300 V CAT II and connects via the TekVPI® interface for automatic oscilloscope scaling and unit adjustment.
Technical Specifications
• Bandwidth: 1 GHz
• Attenuation Factor: 10X
• Input Capacitance: 3.9 pF
• Maximum Input Voltage: 300 V CAT II
• Input Impedance: 10 MΩ || 3.9 pF
• Cable Length: 1.3 m
• AC Compensation: Built-in across entire frequency range
– Key Features
• Compact probe head for small-geometry circuit elements and dense board layouts
• Small probe body design enhances visibility to the device under test
• Rigid probe tip ensures secure device connectivity
• Replaceable MMCX tip cartridge with included 0.1″ and 0.062″ square pin adapters for hands-free operation across standard headers and 0402 components

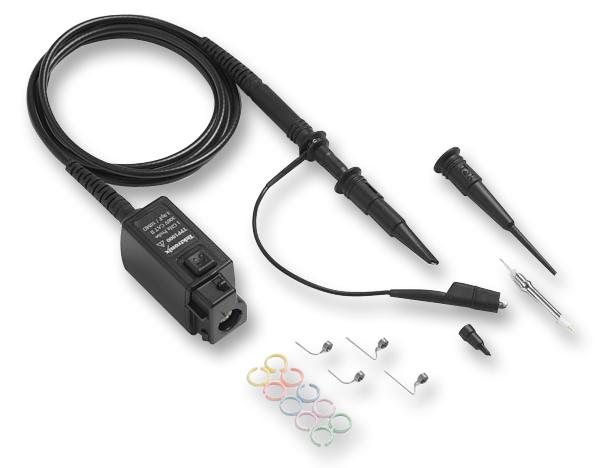

• Comprehensive accessory set: pogo tip, dual short and long ground springs, 6 in. alligator ground, regular and micro hook tips, universal 3.8 mm IC cap, insulator sleeve, and color band identification pairs
– Typical Applications
• Low-power device characterization
• Manufacturing and field service test
• Engineering validation and prototyping
• Research and development bench work
– Compatibility & Integration
Designed for Tektronix MDO3000, MDO4000, MSO/DPO5000, and 5 Series MSO oscilloscopes. Also supports MDO/MSO/DPO4000B and MSO/DPO5000B series instruments via TekVPI® connectivity.
