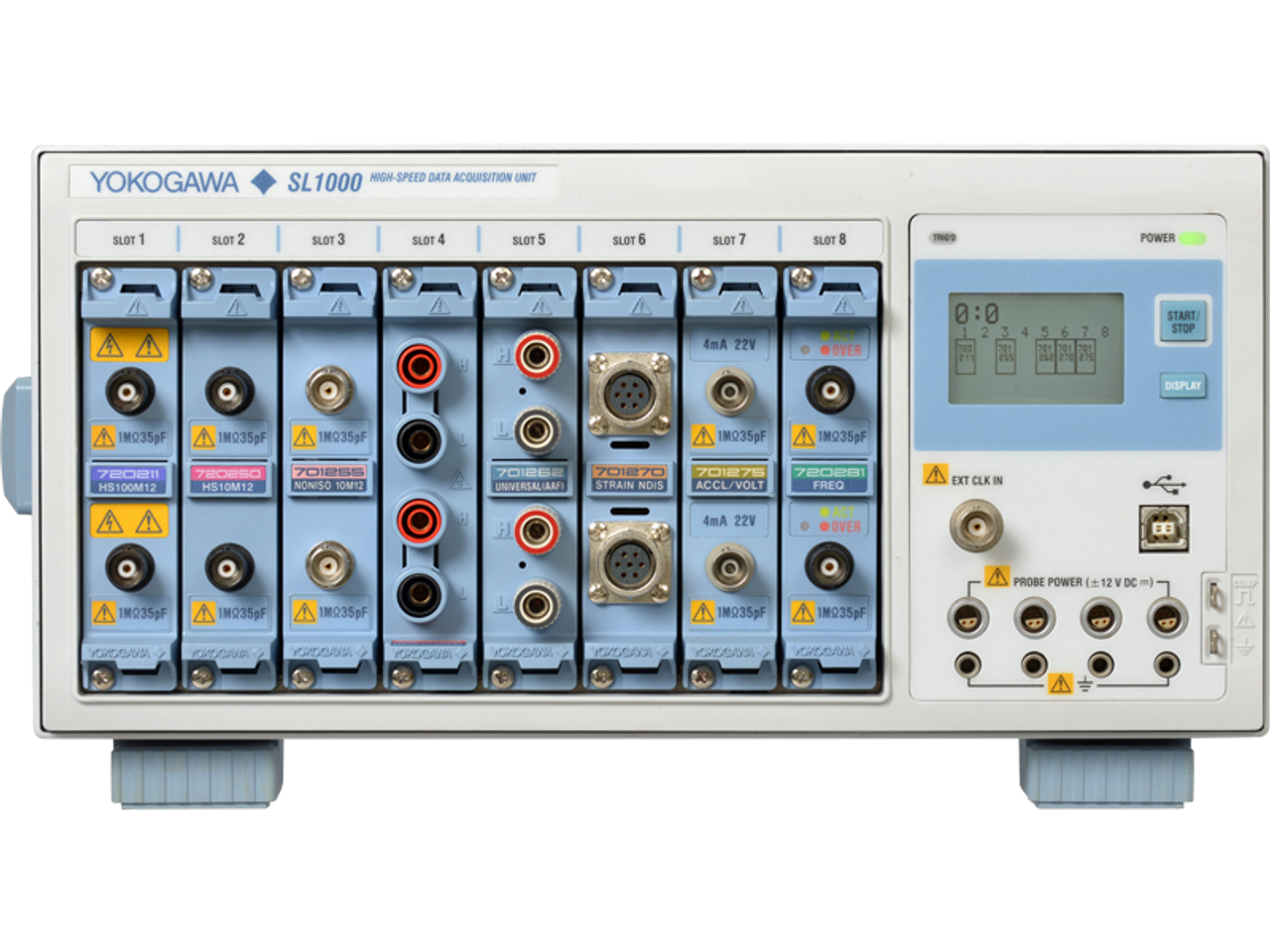

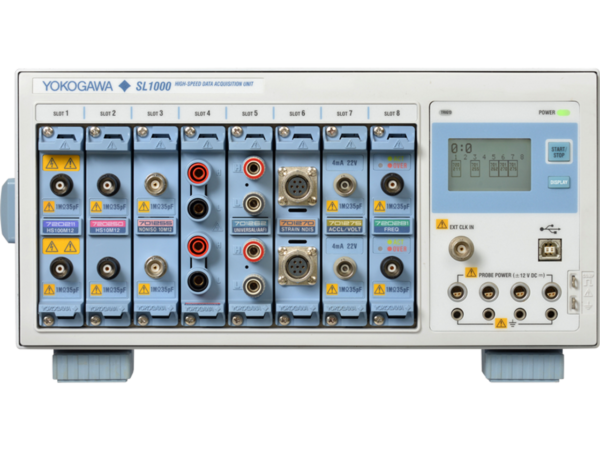

The Yokogawa SL1000 is a modular, high-channel count data acquisition system that combines oscilloscope and data logger functionality into a single platform. It captures simultaneous transient events at high speed while maintaining long-term trend monitoring capability, eliminating traditional compromises between digitizer performance and PC-based flexibility. With isolated channels, multiple independent sample rates, and extensive plug-in module support, the SL1000 addresses demanding measurement requirements in automotive, power electronics, and mechatronics applications.
Technical Specifications
Acquisition Performance
• Maximum sample rate: 100 MS/s across all channels (10 ns sampling interval)
• A/D resolution: 12-bit
• Bandwidth: 20 MHz (module-dependent)
• Channel isolation: 1 kV per channel (module-dependent)
• Simultaneous independent sample rates: up to four
• Acquisition modes: Normal, envelope, box average
• Maximum internal memory: 50 MW/ch (single trigger mode)
Data Transfer and Storage
• Real-time connectivity: USB 2.0 or 1000BASE-T Gigabit Ethernet
• Internal hard disk recording speed: up to 1.6 MS/s (100 kS/s × 16 channels) with /HD1 option
• Data formats: Binary (*.wdf), convertible to ASCII (*.csv) or Excel (*.xls)
• Standalone operation without PC connection supported
Modularity and Expandability
• Module slots: eight per unit
• Available module types: thirteen ScopeCorder series modules
• Measurable parameters: voltage, high voltage, temperature, strain, acceleration, frequency
• Maximum channels per unit: 16
• Multi-unit synchronization: up to 8 units for 128 total channels
– Key Features
• GIGAZoom engine for real-time waveform display and interactive zooming
• Setup Wizard for guided system configuration
• Real-time displays: trend, instantaneous value (digital/bar graph/meter/thermometer), X-Y, mark, accumulation, snapshot
• Cursor measurements and parameter analysis
• Offline waveform computation: arithmetic operations, trigonometry, differentiation, integration, FFT (with /XV1 option)
• Channel and system alarm functions with history analysis and GO/NO-GO determination
– Typical Applications
• Automotive electrical system testing and validation
• Power electronics transient characterization
• Mechatronic system performance monitoring
– Compatibility & Integration
Standalone acquisition software with intuitive interface. Data streams directly to PC or internal storage. Multi-unit operation enables extended channel counts for large-scale distributed measurement campaigns.
