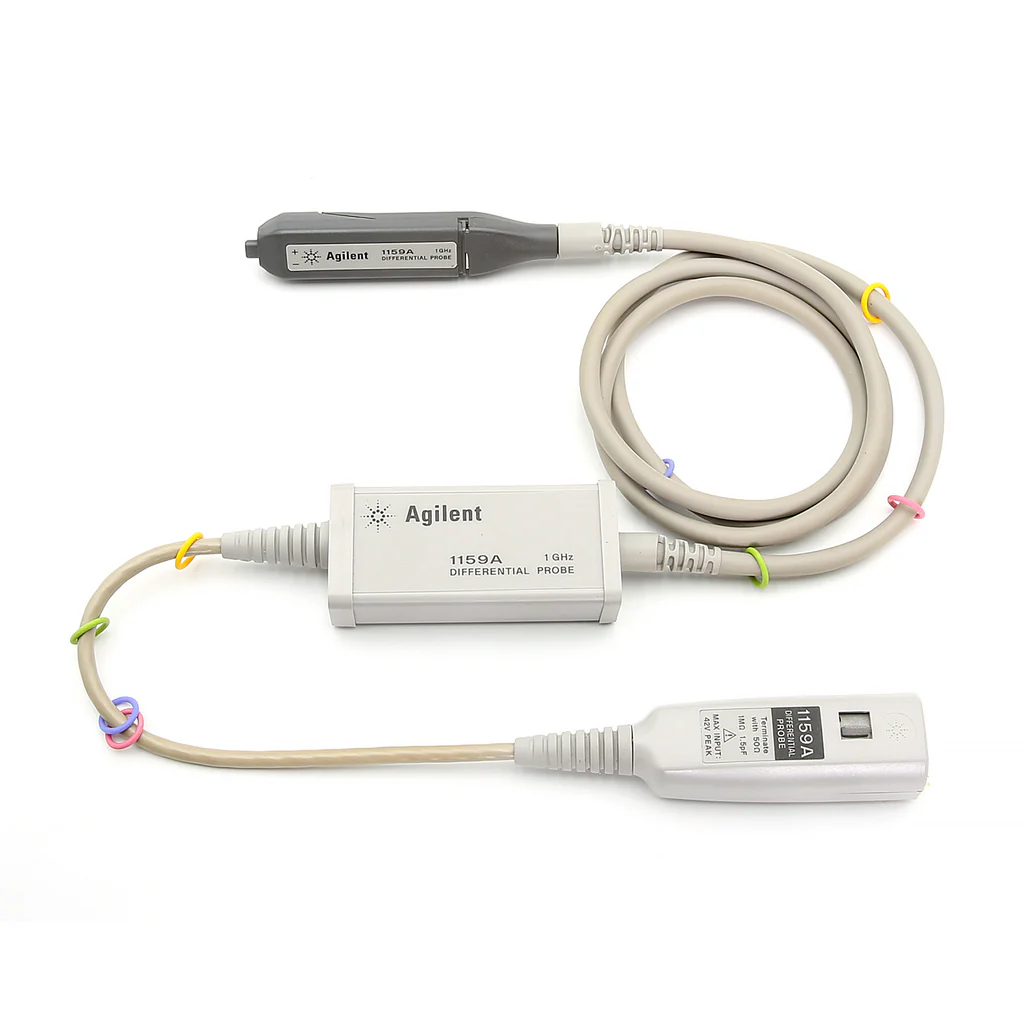

The Agilent/Keysight 1159A is a wideband FET input differential active probe engineered for high-speed acquisition of low-voltage differential signals. Operating from DC to 1 GHz with <350 ps rise time, it delivers the low noise and minimal loading required for precision measurements in disk drive read channels, differential LAN interfaces, and video signal characterization. The probe's high input impedance (1 MΩ per side to ground) and exceptionally low input capacitance (<0.85 pF differential, <1.5 pF to ground at 1:1 attenuation) minimize circuit loading. Robust common mode rejection spanning 80 dB at 70 Hz through 13 dB at 1 GHz provides clean differential measurements across the frequency spectrum.
Technical Specifications
• Bandwidth: DC to 1 GHz (-3 dB)
• Rise Time (1:1 attenuation, probe only): <350 ps
• Input Attenuation: 1:1 ratio
• Input Resistance: 1 MΩ per side to ground
• Input Capacitance (1:1 attenuation, no external attenuators):
– Between inputs: <0.85 pF
– Each side to ground: <1.5 pF
• Common Mode Rejection Ratio:
– 70 Hz: 80 dB
– 1 MHz: 40 dB
– 100 MHz: 25 dB
– 500 MHz: 19 dB
– 1 GHz: 13 dB
• Maximum Input Voltage:
– Either input from ground: ±42 V
– Differential: ±400 mV
– Common mode: ±16 V
• Offset Range: ±1.5 V to ±1.6 V
• Input Coupling: DC (AC coupling available via optional adapter)
• Weight: Approximately 226 g
• Operating Temperature: 0 to 50 °C
• Storage Temperature: -40 to 75 °C
– Key Features
• FET-buffered inputs deliver high impedance for minimal circuit perturbation
• Single-ended measurement capability in digital systems without ground loops
• AutoProbe Interface compatibility with Keysight Infiniium oscilloscopes
• 0.025" square pin connectors enable custom test fixture integration
• AC coupling adapter included (Part Number: 01154-82101)
– Typical Applications
Disk drive read channel analysis, differential LAN signal characterization, video signal measurements, and general high-bandwidth low-voltage differential signal acquisition.
– Compatibility & Integration
Designed for Keysight Infiniium oscilloscopes with AutoProbe Interface support. Input receptacles accept standard 0.025" square pins for fixture integration.
