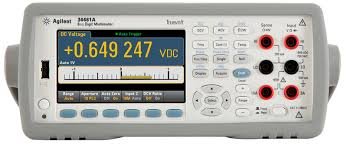

The Keysight 34461A is a 6½ digit digital multimeter engineered for precise measurements across DC/AC voltage, current, resistance, frequency, and specialized functions. Built on Truevolt technology, this instrument eliminates real-world measurement errors—noise, input bias current, and injected current—delivering 35 ppm basic DCV accuracy (0.0035%) and true RMS AC measurements with crest factor support up to 10.
Measurement capabilities span DCV to 1000 V, ACV to 750 V, DC/AC current from 100 µA to 10 A, 2- and 4-wire resistance from 100 Ω to 100 MΩ, frequency and period from 3 Hz to 300 kHz, capacitance, diode testing, continuity, and temperature via RTD/PT100 and thermistor sensors. The 4.3-inch color graphical display supports number, histogram, bar chart, and trend chart modes, enabling real-time data visualization. Internal memory stores 10,000 readings with data logging for trend analysis and digitizing mode for transient capture.
Technical Specifications
• Voltage (DCV): 0–1000 V
• Voltage (ACV): 0–750 V
• Current (DC/AC): 100 µA–10 A
• Resistance: 100 Ω–100 MΩ (2- and 4-wire)
• Frequency/Period: 3 Hz–300 kHz
• Capacitance: Available
• Temperature: RTD/PT100 and thermistor support
• Resolution: 6½ digits
• Basic DCV Accuracy (1-year): 35 ppm
• Maximum Reading Rate: 1,000 readings/s (4½ digits)
• Display: 4.3-inch color graphical
• Memory: 10,000 readings internal storage
• Dimensions: 4.09 in (H) × 11.94 in (L) × 10.28 in (W)
• Weight: 8.3 lbs
– Key Features
• True RMS with direct digital sampling; crest factor capability to 10 without additional error terms
• Injected current minimized to less than 30% of comparable instruments
• ISO/IEC 17025 tested and guaranteed specifications
• Diode testing with 5 V range
• Continuity testing
• Data logging and trend analysis modes
• Transient digitizing capture
– Interfaces & Connectivity
• USB and LAN/LXI standard
• GPIB optional (factory-installed or customer-installable)
• Front-panel USB memory connector for file transfer
– Compatibility & Integration
100% SCPI-compatible drop-in replacement for the Keysight 34401A Digital Multimeter, enabling direct integration into existing test systems without code or hardware modifications.
