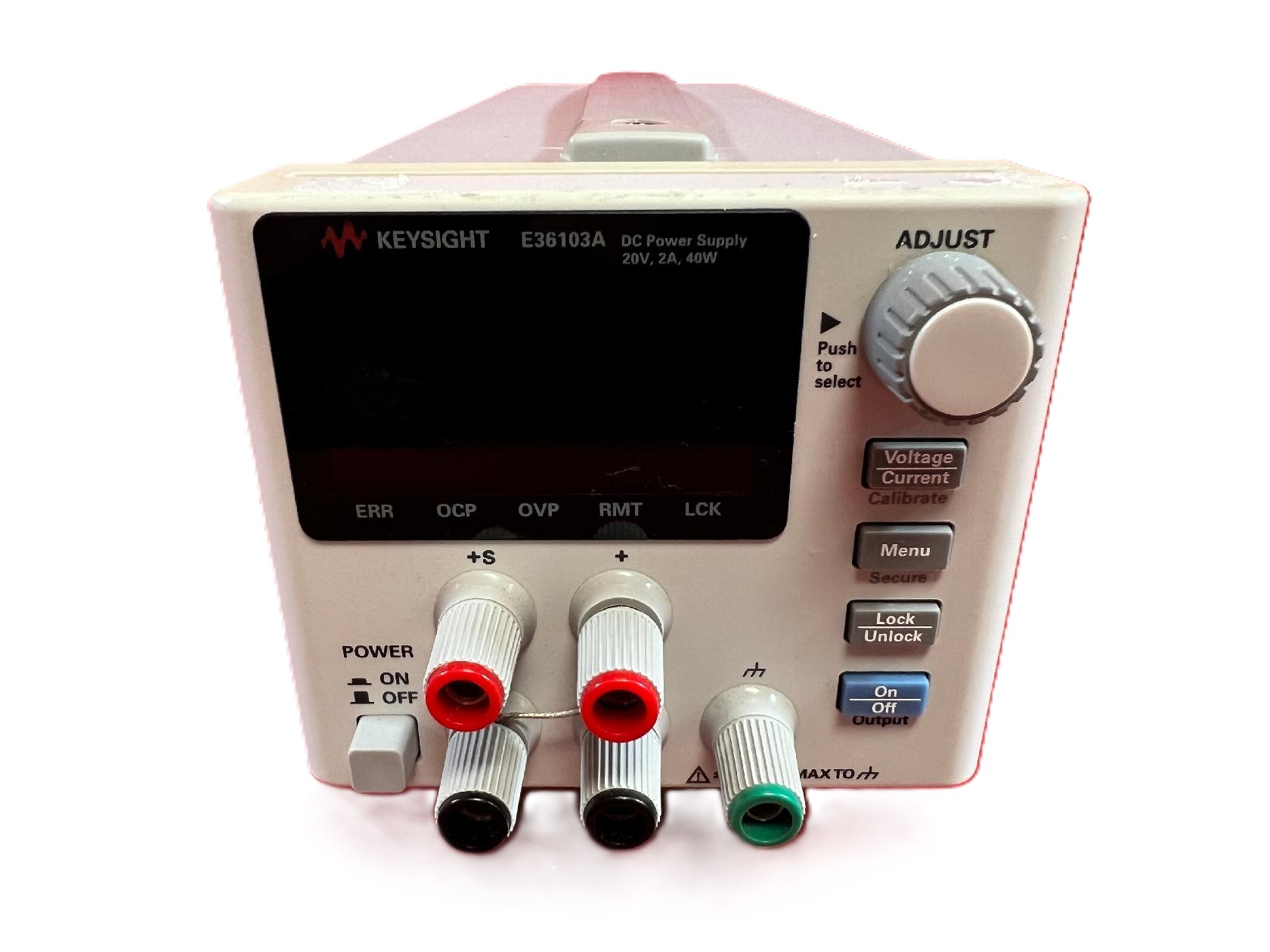

The Agilent/Keysight E36103A is a single-output, 40 W DC power supply engineered for benchtop, system integration, and laboratory environments. It delivers programmable voltage and current output with precision readback, triple-layer protection circuitry, and modern instrument connectivity. The unit combines an intuitive front-panel interface with remote programming capability, making it suitable for R&D, production testing, and educational applications requiring stable, clean power delivery.
Technical Specifications
Output Ratings (0 to 40 °C):
• Voltage: 20 V
• Current: 2 A
• Power: 40 W
Programming Accuracy & Resolution:
• Voltage accuracy: 0.05% + 7 mV; resolution: 0.001 V
• Current accuracy: 0.05% + 1 mA; resolution: 0.001 A
Readback Accuracy & Resolution:
• Voltage accuracy: 0.05% + 5 mV; resolution: 0.001 V
• Current accuracy: 0.05% + 1 mA; resolution: 0.001 A
Ripple and Noise (20 Hz to 20 MHz):
• Voltage RMS: 2 mV; peak-to-peak: 30 mV
• Current RMS: 1 mA
Environmental:
• Operating temperature: 0 to 40 °C at full rated output; output current derates 1% per °C from 40 °C to 55 °C
– Key Features
• Over-voltage, over-current, and over-temperature protection
• High-contrast OLED display for enhanced visibility
• 10 stored power supply configurations in non-volatile memory
• 2U, ¼-rack form factor for space-efficient integration
• Front-panel control via rotary knob and keypad
– Connectivity & Integration
• USB and LAN (LXI Core) interfaces
• SCPI programming language support
• IVI driver compatibility
• Browser-accessible web interface
• Keysight IO Libraries Suite integration
• BenchVue app support for remote monitoring and control
