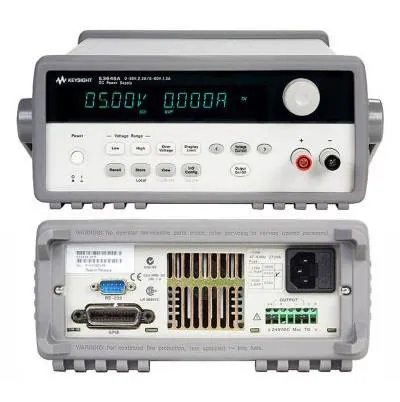

The Agilent/Keysight E3641A is a 30 W single-output programmable DC power supply delivering dual-range flexibility for diverse bench and production testing scenarios. Two selectable ranges—0 to 35 VDC at 0 to 0.8 A, or 0 to 60 VDC at 0 to 0.5 A—enable optimization for either higher current at lower voltage or lower current at higher voltage applications. Programming accuracy reaches ±(0.05% of output + 10 mV) for voltage and ±(0.2% of output + 10 mA) for current at 25°C ±5°C. Load regulation is held below 0.01% + 3 mV (voltage) with line regulation at 0.01%, while voltage ripple and noise remain under 8 mVpp / 1 mVrms across 20 Hz to 20 MHz.
Technical Specifications
• Output Ranges: 0–35 VDC @ 0–0.8 A or 0–60 VDC @ 0–0.5 A
• Programming Accuracy (25°C ±5°C): Voltage ±(0.05% + 10 mV); Current ±(0.2% + 10 mA)
• Readback Accuracy (25°C ±5°C): Voltage ±(0.05% + 5 mV); Current ±(0.15% + 5 mA)
• Load Regulation: <0.01% + 3 mV (voltage); <0.01% + 250 µA (current)
• Line Regulation: 0.01%
• Voltage Ripple/Noise: <8 mVpp / 1 mVrms (20 Hz–20 MHz)
• Transient Response: <50 µsec recovery to within 15 mV
• Output Stability: <0.01%
• AC Input: 115 VAC ±10%, 47–63 Hz (100 VAC and 230 VAC options available)
– Key Features
• Adjustable overvoltage protection (OVP) monitored from front panel and remote interface
• Remote sensing via rear terminals to compensate for load lead voltage drops
• Front panel rotary knob and keypad controls with 10 mV / 1 mA resolution
• Storage for up to five complete setups in non-volatile memory
• Electronic calibration capability from front panel
• VFD display with fan cooling and automatic speed control
– Typical Applications
Bench testing, component characterization, automated test systems, and production verification requiring stable, adjustable DC power with programmable control.
– Compatibility & Integration
GPIB (IEEE-488) and RS-232 interfaces enable remote programming and integration with VXI-compatible test systems. Benchtop form factor (8.38" × 3.48" × 13.7") with front binding posts and rear screw terminals supports flexible cabling options.
