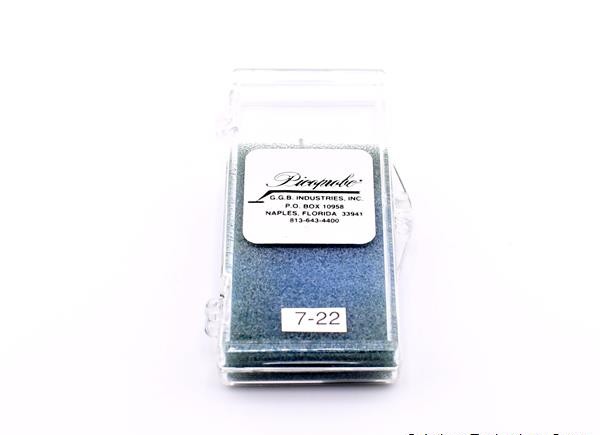

The GGB Industries Picoprobe 7-22 is a replacement probe tip engineered for high-frequency signal acquisition on Picoprobe 7 and 7A systems. It delivers a 22 micrometer tungsten probing wire with a sub-micrometer point radius, optimized for minimal capacitive coupling and signal integrity in demanding measurement environments. The probe tip features shielding to within three millimeters of the probe point and maintains malleable geometry for custom probing configurations across any micropositioner platform.
## Technical Specifications
• **Manufacturer:** GGB Industries / Picoprobe
• **Model:** 7-22 Replacement Probe Tip
• **Tungsten Probing Wire Shaft Diameter:** 22 micrometers
• **Point Radius:** < 1.0 micrometer
• **Material:** Tungsten probe wire
• **Shielded Environment:** Extends to within 3 millimeters of probe point
• **Cable Length (Picoprobe 7/7A system):** 6 feet standard; 3 feet recommended for capacitance measurements with Model 7A
• **System Termination:** Picoprobe 7 terminated to 50 ohms; Model 7A unterminated
## Key Features
• Shielded probe geometry minimizes capacitive coupling in high-frequency applications
• Ultra-fine tungsten point (< 1.0 micrometer radius) enables precision contact to fine-pitch circuitry
• Malleable probe tip accommodates variable probing angles and geometries
• Compatible with standard micropositioner mounting systems
• Miniature connector interface for quick probe tip exchange
## Typical Applications
• High-frequency signal acquisition and measurement
• Detailed circuit analysis and node probing
• IC characterization and debugging in demanding test environments
• Capacitance and resistance measurements (via Model 7A)
• Low to medium-speed signal applications
## Compatibility & Integration
The 7-22 tip is designed for GGB Industries Picoprobe 7 and 7A probe systems. The Picoprobe 7 features a 6-foot, 50-ohm coaxial cable terminated to 50 ohms for impedance-matched measurements. The unterminated Model 7A serves applications requiring capacitance/resistance measurement or lower-speed signal work. The probe tip integrates with Picoprobe 12C and 18C systems as a companion probe for IC line driving.
