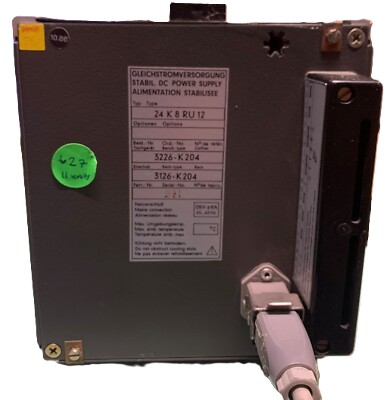

The Gossen Konstanter 24K8RU12 is a programmable DC power supply delivering 8V at 12A (96W) for laboratory and production test environments. This computer-controlled unit combines voltage and current regulation with fast sub-millisecond response times, making it suitable for sensitive electronic equipment requiring stable, protected power delivery. The supply integrates directly into automated test systems via RS 232C interface and software drivers for LabVIEW, LabWindows/CVI, and Agilent VEE, eliminating manual control overhead.
Technical Specifications
• Output: Single channel, 8V / 12A
• Output Power: 96W
• Voltage Regulation: Voltage regulated
• Current Regulation: Current regulated
• Response Time: <1 ms (load-independent)
• Output Ripple: Minimal residual ripple
• Interfaces: RS 232C (standard); IEEE 488 (optional)
• Analog I/O: Monitor outputs, auxiliary power, programmable signal outputs, trigger and setpoint inputs with external control voltage capability
• Remote Sensing: Supported with dedicated connector sockets
• Sequence Control: Voltage and current sequence generation with precise step rate control
• Master-Slave Operation: Parallel or series connection supported for multi-output configurations
– Key Features
• Overvoltage protection (OVP)
• Overcurrent protection (OCP)
• Over-temperature protection
• Polarity reversal protection for electronic loads
• Output ON/OFF control
• Lockable control elements
– Typical Applications
Research and development, production testing, and device characterization where consistent output and protection against voltage transients are critical. Sequence-based testing and multi-supply coordination via master-slave operation.
– Compatibility & Integration
Part of the SSP KONSTANTER series. Native drivers support LabVIEW, LabWindows/CVI, and Agilent VEE. RS 232C control standard; IEEE 488 option enables integration with legacy GPIB-based test systems.
