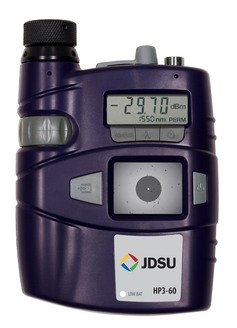

The JDSU HP3-60-P4 is a handheld fiberscope that combines fiber optic connector inspection with optical power measurement in a single integrated platform. Field technicians and installers use this device to inspect fiber end faces, measure optical power across multiple wavelengths, and verify signal attenuation—eliminating the need for separate inspection and test instruments and reducing overall inspection cycle time.
Technical Specifications
Display & Magnification
• 1.8-inch TFT LCD screen delivers clear, detailed images of fiber end faces
• Optical magnification: 200X, 400X, or 200/400X (dual-magnification probes)
• Horizontal field-of-view: 550 μm @ 200X; 350 μm @ 400X
Fiber Inspection
• Integrated patch cord microscope (PCM) eliminates probe tip changes
• Inspects both bulkhead (female) and patch cord (male) connector sides
• Supports single-mode and multimode fiber across LAN, Telecom, CATV, and DWDM applications
• Compatible with JDSU FMAE adapters for multiple connector types
Optical Power Measurement
• Measures optical power and attenuation in dBm and dB
• Pre-calibrated wavelengths: 850, 980, 1300, 1310, 1490, 1550, and 1625 nm
• Supports dual-wavelength measurements with saved reference levels (e.g., 850/1300 nm, 1310/1550 nm)
• Automatic wavelength detection when paired with JDSU light source
• Modulation frequency detection capability
• Input range: -50 to +5 dBm; maximum permitted input: +10 dBm
• Linearity: ±0.06 dB across measurement range
Interfaces & Connectivity
• 4-pin Hirose input for FBP series probe microscopes
• Universal Push-Pull (UPP) input for 2.5 mm connectors (1.25 mm adapter available for LC and MU connectors)
Power & Operational
• Six AA alkaline batteries or AC adapter (100–240 VAC / 9V DC / 500 mA)
• Continuous runtime: approximately 3 hours
• Auto-shutoff: 20 minutes
• Low battery warning indicator
• Three-button operation; hanging hook for hands-free use
Physical
• Dimensions: 162 x 114 x 42 mm (6.4 x 4.5 x 1.7 in)
• Weight: 333 g (11.7 oz) with six AA alkaline batteries
