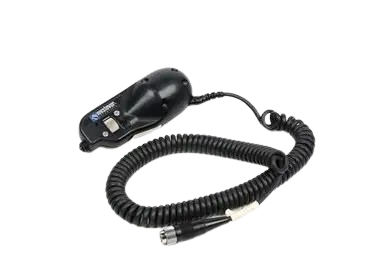

The JDSU FBP-P105 is a video inspection probe microscope engineered for high-resolution examination of fiber optic connector end faces. It delivers 200X optical magnification through a 1/3-inch CMOS camera paired with internal blue LED coaxial illumination, enabling detailed visualization of both simplex and multi-fiber connectors. The probe outputs NTSC video in real time and features an integrated QuickCapture button for immediate image capture. Manual focus adjustment is performed in-probe for precise clarity. Weighing 180 g (6.35 oz) and measuring 46 × 43 × 140 mm, the FBP-P105 is designed for one-hand operation in confined spaces and hard-to-reach panel locations. The blue LED light source is rated for 100,000+ hours of operation. This model connects via a 6-pin Hirose connector (without USB integration) and operates from power supplied by compatible display devices or USB modules. The horizontal field-of-view at 200X magnification is 550 μm, enabling inspection of male patch cord connectors, female bulkhead connectors, and ribbon assemblies.
Technical Specifications
• Magnification: 200X optical
• Camera: 1/3-inch CMOS sensor
• Video Output: NTSC
• Light Source: Blue LED, coaxial, 100,000+ hour lifespan
• Field-of-View (horizontal @ 200X): 550 μm
• Focus Control: Manual, adjustable in-probe
• Dimensions: 46 × 43 × 140 mm (1.8 × 1.7 × 5.5 in)
• Weight: 180 g (6.35 oz)
• Probe Connector: 6-pin Hirose (without USB)
– Key Features
• QuickCapture button for instant image acquisition
• Coaxial LED illumination for glare-free end-face inspection
• Ergonomic handheld probe design
• In-probe manual focus mechanism
• 550 μm horizontal FOV at 200X magnification
– Typical Applications
• Fiber optic connector inspection in telecommunications
• End-face contamination and defect detection
• Quality assurance in patch panel installations
• Field maintenance and troubleshooting
– Compatibility & Integration
• Compatible with JDSU/Viavi display platforms including T-BERD/MTS systems
• Supports inspection of simplex and multi-fiber ribbon connectors
• Male and female connector compatibility
• Requires appropriate inspection tips and adapters for specific connector types
• Powered by compatible display devices or external USB modules
