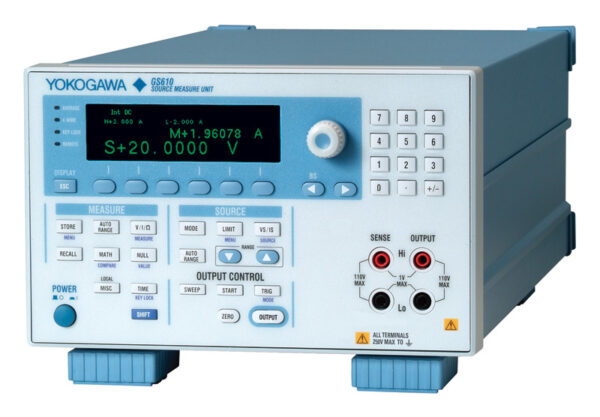

The Yokogawa GS610 is a two-channel programmable Source Measure Unit designed for high-precision electrical characterization and testing. It combines voltage and current sourcing with simultaneous measurement capability, enabling four-quadrant operation up to 110 V and 3.2 A with maximum output power of 60 W. The instrument operates in multiple modes including voltage/current generation with corresponding measurements, and functions as both source and sink. With 5.5-digit resolution and ±0.02% basic accuracy on DC voltage generation, the GS610 supports arbitrary waveform generation, curve tracing of semiconductor devices, and synchronized multi-unit operation for complex device characterization.
Technical Specifications
Electrical Performance
• Maximum Output Voltage: 110 V
• Maximum Output Current: 3.2 A (at ≤12 V); 2 A (at ≤30 V); 1 A (at ≤60 V); 0.5 A (at ≤110 V)
• Maximum Output Power: 60 W
• Voltage Generation/Measurement Range: 200 mV to 110 V
• Current Generation/Measurement Range: 20 µA to 3.2 A
• Output and Measurement Resolution: 5.5 digits
• Basic Accuracy (DC Voltage Generation): ±0.02%
• Basic Accuracy (DC Current Generation): ±0.03%
• Sweep Output Interval: Up to 100 µs
Channel Configuration
• Number of Channels: 2
• Quadrant Operation: Four-quadrant (source and sink)
– Key Features
• DC generation and pulse generation modes
• Continuous output, linear sweep, logarithmic sweep, and program sweep capabilities
• Arbitrary waveform function for user-definable sweep patterns
• Curve tracer function for V-I characteristic measurement of 2-terminal semiconductor devices
• Internal memory storage up to 65,535 points of source measure data
• USB storage function for easy file operation and data transfer
• Remote control and FTP support via optional web server function
• Synchronized operation capability with multiple GS610 units
– Typical Applications
• Semiconductor device characterization and testing
• Component and circuit analysis
• Material property evaluation
• Production line testing and quality control
• Research and development testing
– Compatibility & Integration
The GS610 supports multi-unit synchronization for coordinated measurements and offers optional web server functionality for remote operation and data management via FTP.
