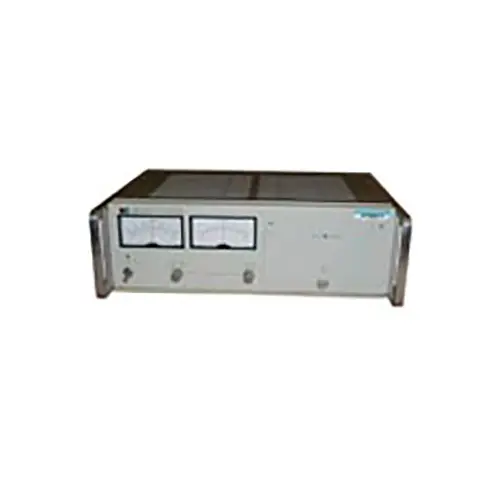

The Agilent/Keysight 6130C is a programmable DC power supply delivering 100 W across a ±50 V output range with 1 A maximum current. Engineered for both benchtop operation and integration into automated test systems, this unit combines low-noise performance with excellent regulation and fast settling characteristics for demanding electronic development and verification applications.
Technical Specifications
Electrical Performance
• Output voltage range: ±50 V
• Maximum output current: 1 A
• Total power output: 100 W
• Load regulation (V/C): 5 mV
• Load regulation (C/V): 10 mV
• Output settlement time: Less than 300 µs for programmed changes
• Range change time: 2 ms
Input Requirements
• AC input: 115 V ±10%, 48–440 Hz
• Input current: 1.2 A
Protection & Control
• Programmable current latch: Selectable to eight discrete values from 2% to 100% of rated output current with externally adjustable reaction time
• Fixed current limit: Prevents output from exceeding 110% of rated specification
• Convection cooled design
Physical Dimensions
• Height: 133.4 mm (5.25 in)
• Width: 425.5 mm (16.75 in)
• Depth: 396.9 mm (15.63 in)
• Net weight: 15 kg (32 lb)
– Key Features
• Analog input for AC signal injection onto DC output—enables impedance measurements and worst-case condition simulation
• Dedicated current monitoring terminals for non-invasive output current measurement
• Fast programmable voltage limiting with independent current latch configuration
• Dual-layer overcurrent protection for reliable circuit defense
– Typical Applications
Electronic device characterization, component burn-in testing, automated production verification, impedance analysis, and development bench work requiring stable, low-noise DC power with precise current control.
– Compatibility & Integration
Suitable for standalone benchtop deployment and seamless incorporation into automated test platforms. Digital interface options support integration with legacy and contemporary test automation frameworks.
