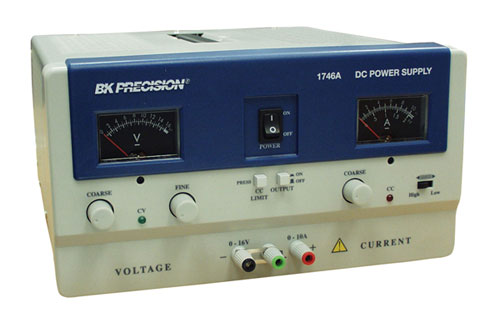

The BK Precision 1746A is a 0-16 VDC, 0-10 A analog DC power supply designed for laboratory and testing applications. It offers constant voltage or constant current operation with automatic crossover, adjustable voltage and current controls, and built-in metering for monitoring output parameters. The unit is protected against overload and reverse polarity, ensuring the safety of both the power supply and the connected device.
### Technical Specifications
* **Model:** BK Precision 1746A
* **Output Voltage:** 0 to 16 VDC
* Continuously adjustable with coarse and fine controls.
* **Output Current:**
* High Range: 0 to 10 A
* Low Range: 0 to 2 A
* Adjustable current limit from 5% to 100% of maximum output current.
* **Power Output:** 180 W maximum (calculated: 16V * 10A = 160W, however short-duration peak power may exceed this)
* **Regulation:**
* Line Regulation: ≤ (0.2% + 2 mV)
* Load Regulation: ≤ (0.04% + 2 mV)
* **Ripple Voltage:** Very low
* Typical Peak-to-Peak: 2 mV
* Typical RMS: 1 mV
* **Current Regulation:** (Constant Current Mode)
* Line Regulation: Not specified
* Load Regulation: Not specified
* **Current Ripple:** 3 mA typical
* **Metering:**
* Two large, easy-to-read analog meters continuously monitor output voltage and current.
* Voltmeter: 4-digit Green LED Display, Range 0 to 99.99 V, Accuracy (0.5% + 9 digits)
* Ammeter: 4-digit Red LED Display
* **Operating Modes:**
* Constant Voltage (CV): Green LED indicator.
* Constant Current (CC): Red LED indicator.
* Automatic and smooth crossover between CV and CC modes.
* **Protection:**
* Overload Protection: Fully adjustable current limiting.
* Reverse Polarity Protection: Prevents damage from external reverse voltage.
* **Series/Parallel Operation:**
* Two supplies can be connected in series to double voltage output.
* Two supplies can be connected in parallel to double current output.
* **Cooling:** Operates continuously at full load without overheating. Requires sufficient air space around the heat sink.
* **Input Power:**
* Mains Voltage: 115 V RMS or 230 V RMS selectable.
* Line Voltage Range: 108-132 V AC
* **Dimensions:**
* Width: 10.5 in
* Height: 5.7 in
* Length: 15 in
* Weight: 20 lbs
### Interfaces
* **Output Terminals:**
* Positive (+) Terminal (Red)
* GND Terminal (Earth and chassis ground)
* **AC Input:** Polarized 3-wire AC outlet connection required.
### Physical Characteristics
* **Construction:** Reliable and durable design.
* **Controls:** Coarse and fine voltage controls. Coarse and fine current controls for limiting/setting.
* **Indicators:** LED indicators for CV/CC mode and power ON.
* **Chassis Ground:** Connected via the ground conductor of the AC line power cable for safety.
### Compatibility
* **Replaced by:** The 1746A has been replaced by the 1746B model.
* **Accessories:**
* TL 5A: 5A Hook-Up Cable Set (4mm Banana plug to alligator clip, 40″ length).
* TLPS: Power Supply Test Leads Set (includes various alligator clips and banana plug adapters).
