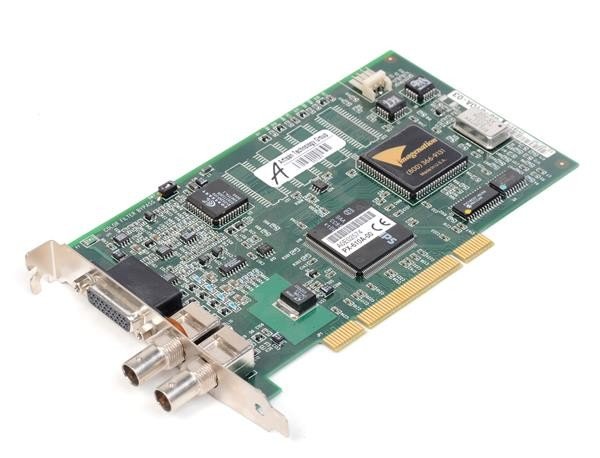

The CyberOptics/Imagenation PX-610A-00 is a precision video frame grabber for industrial and scientific image acquisition. This PCI bus master device captures high-accuracy imagery from progressive scan cameras, eliminating motion blur in fast-moving subjects. It supports up to four composite video inputs with software-selectable sources in RS-170 (NTSC) and CCIR (PAL) formats, delivering resolutions up to 768 × 486 pixels (RS-170) or 768 × 576 pixels (CCIR) at 8-bit depth with less than 0.8 LSB video noise.
## Technical Specifications
• **Video Inputs:** Four composite inputs, 1 V peak-to-peak, 75 Ω impedance; RS-170 and CCIR compatible with software source selection
• **Resolution:** RS-170 maximum 768 × 486 pixels; CCIR 768 × 576 pixels; 256 gray levels (8-bit)
• **Sampling Jitter:** ±3 ns maximum relative to horizontal sync
• **Video Noise:** <0.8 LSB
• **Cropping & Scaling:** Vertical and horizontal cropping and scaling supported
• **Gain & Offset:** Software-adjustable
• **Look-Up Tables:** 256-byte input LUT with software programming and automatic loading
• **External Trigger:** TTL input, 100 ns minimum pulse width; programmable edge/level and polarity
• **Strobe Outputs:** Two TTL outputs with independent pulse width and polarity control
• **Synchronization:** High-precision digital sync with horizontal and vertical drive outputs for camera gen-locking
• **Power:** +5 VDC (850 mA PCI; 650 mA PC/104-Plus/CompactPCI); +12 VDC camera output
## Key Features
• PCI bus master architecture offloads CPU overhead via direct memory and device-to-device transfers
• Available in three form factors: PCI short-card, PC/104-Plus core module, CompactPCI 3U
• Resettable camera support with TTL trigger and dual strobe outputs for exposure and lighting control
• Programmable image LUTs for real-time contrast and tone mapping
## Typical Applications
Machine vision inspection, scientific imaging, motion capture, quality assurance systems.
## Compatibility & Integration
• Operating Systems: DOS, Windows 3.1, Windows 95/98/ME, Windows NT/2000
• Languages: C/C++, Visual Basic
• Compatible with XCaliper and VisionBlox machine vision software
