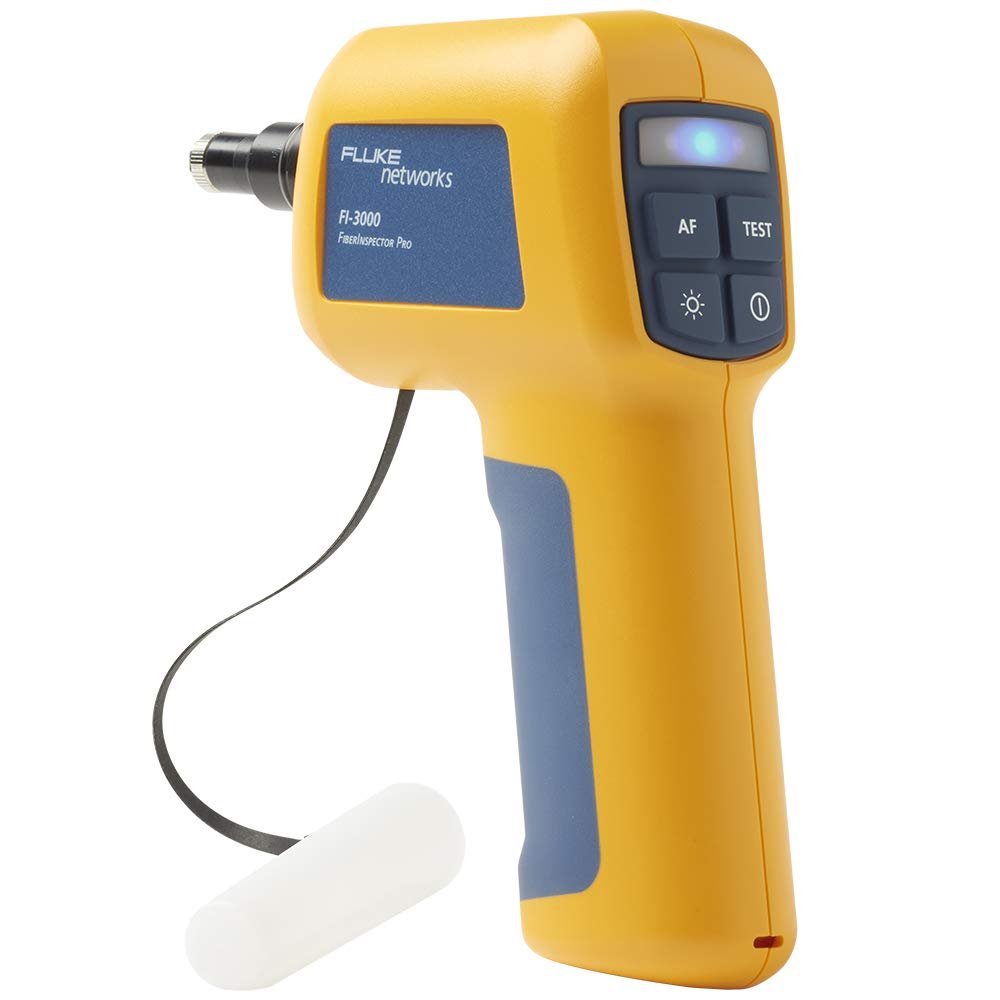

The Fluke Networks FI-3000 FiberInspector Pro is a handheld fiber optic inspection camera for real-time end-face analysis of MPO and single-strand connectors. It delivers instant Live View from full trunk to individual fiber with autofocus and auto-centering, eliminating manual focus and alignment. Automated PASS/FAIL certification compliant with IEC 61300-3-35 reduces inspection time to seconds while minimizing human error.
Technical Specifications
Optical & Imaging
• 5 Megapixel 1/4-inch CMOS sensor
• Resolution: 1 µm
• Field of View: 610 µm × 460 µm
• Coaxial blue LED endface illumination; white LED for resolution
• LED light source with >100,000 hr lifespan
• PortBright illumination for low-light environments
Connectivity & Data
• USB and Wi-Fi
• FI-IN mobile app for iOS and Android wireless operation
• Results storage and sharing via text, email, or mobile device
• Integration with Versiv platform and LinkWare software
Environmental
• Operating Temperature: -10 °C to +45 °C
• Storage Temperature: -10 °C to +60 °C
• Operating Humidity: 0 % to 95 % RH non-condensing (0 °C to 35 °C)
• Storage Humidity: 0 % to 95 % RH non-condensing (35 °C to 45 °C)
• Operating Altitude: 4,000 m (3,200 m with AC adapter)
• Storage Altitude: 12,000 m
• Vibration: 2 g, 5 Hz to 500 Hz
• Shock: 1 meter drop rated
Power
• Lithium-ion battery with auto-off feature
• USB charging and connection
– Key Features
• Multi-camera design for complete trunk and individual end-face viewing
• Graphical indication of problem areas in test results
• Supports 1×8, 1×12, 1×16, 2×12, and 2×16 MPO configurations
• Single-strand connectors with UPC or APC end-types
• Touchscreen gesture control
– Typical Applications
• Data center fiber infrastructure certification
• Field installation and maintenance inspection
• Quality assurance in fiber deployment projects
• Remote inspection via mobile device
– Compatibility & Integration
Works with Versiv mainframe systems and LinkWare project management software. Wireless connectivity to mobile platforms enables on-site documentation and remote collaboration.
