The Tektronix VM700T Video Measurement Set delivers integrated waveform monitoring, vectorscope analysis, picture display, and automated measurement capabilities for broadcast, post-production, and manufacturing environments. This dual-channel instrument processes serial digital video at 143 Mbit, 270 Mbit, and 360 Mbit rates per SMPTE 259, along with analog composite video and AES3 digital audio. Built for baseband video and audio signal verification, it supports unattended monitoring, user-programmable functions, and remote operation.

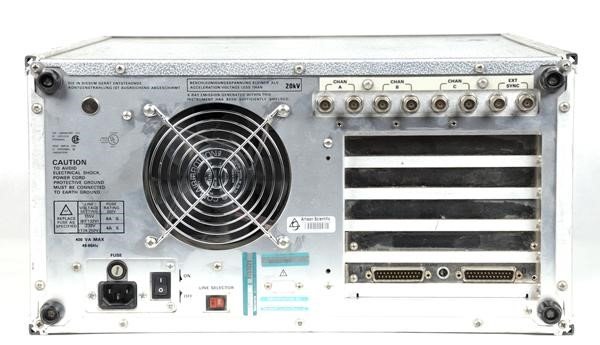

Technical Specifications
Serial Digital Video Input (Channel A)
• 2 BNC connectors with loop-through configuration
• 75 Ohm impedance; return loss > 25 dB (1–360 MHz, powered); > 15 dB (powered off)
• Insertion loss > 0.2 dB (1–360 MHz)
• Supports 143 Mbit, 270 Mbit, 360 Mbit per SMPTE 259
• Launch amplitude 800 mV ± 20%; tolerates ±20 ppm clock deviation
• Rated for 19 dB cable loss at 135 MHz
Serial Digital Video Input (Channel B)
• 1 BNC connector, terminated
• 75 Ohm impedance; return loss > 25 dB (1–360 MHz, powered); > 15 dB (powered off)
• Supports 143 Mbit, 270 Mbit per SMPTE 259
• Clock tolerance matched to input signal
SDI Output
• 1 BNC connector
• 75 Ohm impedance; return loss > 25 dB (1–360 MHz, powered); > 15 dB (powered off)
• Outputs 143 Mbit, 270 Mbit per SMPTE 259
• Clock tolerance matched to input signal
Analog Black-Burst Input
• 2 BNC connectors with loop-through
• 75 Ohm impedance; return loss > 30 dB (1–6 MHz)
• Accepts 525/625 line composite video at ±6 dB wrt 1 V p-p
AES Digital Audio Input
• 1 BNC connector, internally terminated
• 75 Ohm impedance; return loss > 15 dB (0.1–6 MHz)
• AES3 stereo audio per SMPTE 276 at 41 kHz, 44 kHz, 48 kHz
Timecode Input
• 1 Mini-XLR connector for LTC
– Key Features
• Dual-channel serial digital video analysis
• Real-time waveform and vector measurement display
• Picture monitoring with compliance verification
• Automated measurement routines
• Unattended operation capability
• Remote control interface
– Typical Applications
• Broadcast signal quality assurance
• Post-production video validation
• Manufacturing test environments
• On-air monitoring and logging
– Compatibility & Integration
Accepts SMPTE 259 serial digital video, SMPTE 276 AES audio, and analog composite video. Loop-through connections on Channels A and analog black-burst enable daisy-chain configurations.
