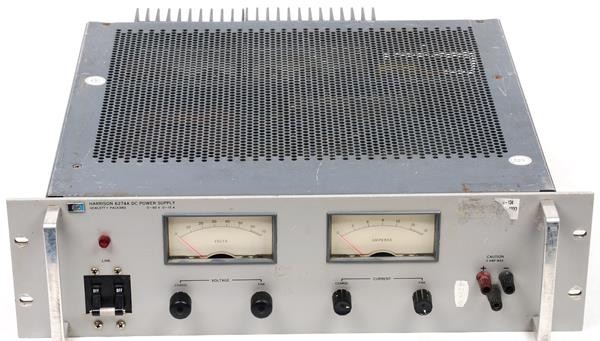

The Agilent/Keysight 6274A is a precision DC power supply delivering 0–60 V and 0–15 A across laboratory and production test environments. It operates in constant voltage (CV) and constant current (CC) modes with load transient recovery under 50 µs, making it suitable for dynamic device characterization and burn-in applications. Dual operational modes—auto-series, auto-parallel, and auto-tracking—enable flexible multi-unit configurations without external control logic.
Technical Specifications
Output Ratings (0–55 °C)
• Voltage: 0–60 V
• Current: 0–15 A
Accuracy (25 °C ±5 °C)
• Voltage programming: 0.04% + 60 mV
• Current programming: 0.1% + 25 mA
Ripple and Noise (20 Hz–20 MHz)
• CV mode: 200 µV rms, 20 mV peak-to-peak
• CC mode: 5 mA rms
Regulation Performance
• Load regulation: 0.01% + 200 µV
• Line regulation: 0.01% + 200 µV
Load Transient Recovery: < 50 µs
– Key Features
• Over-voltage and over-current protection
• Front-panel coarse and fine adjustments with analog meter readout
• Remote analog programming and remote sensing capability
• Barrier strip rear connections for internal/external sensing and remote control
• Optional multiprogrammer interface (Option 040) for 6940B/6941B integration
• Dimensions: 483 mm W × 127 mm H × 479.4 mm D; 21.7 kg
– Typical Applications
Laboratory characterization, production test stations, component burn-in, power conversion testing, and R&D environments requiring stable sourcing with fast transient response.
– Compatibility & Integration
Part of the 6200-series family; stackable with 6256B, 6259B, 6260A, 6263B–6269A, 6271B models via auto-series/parallel operation. Related to higher-power 6574A and 6674A supplies.
